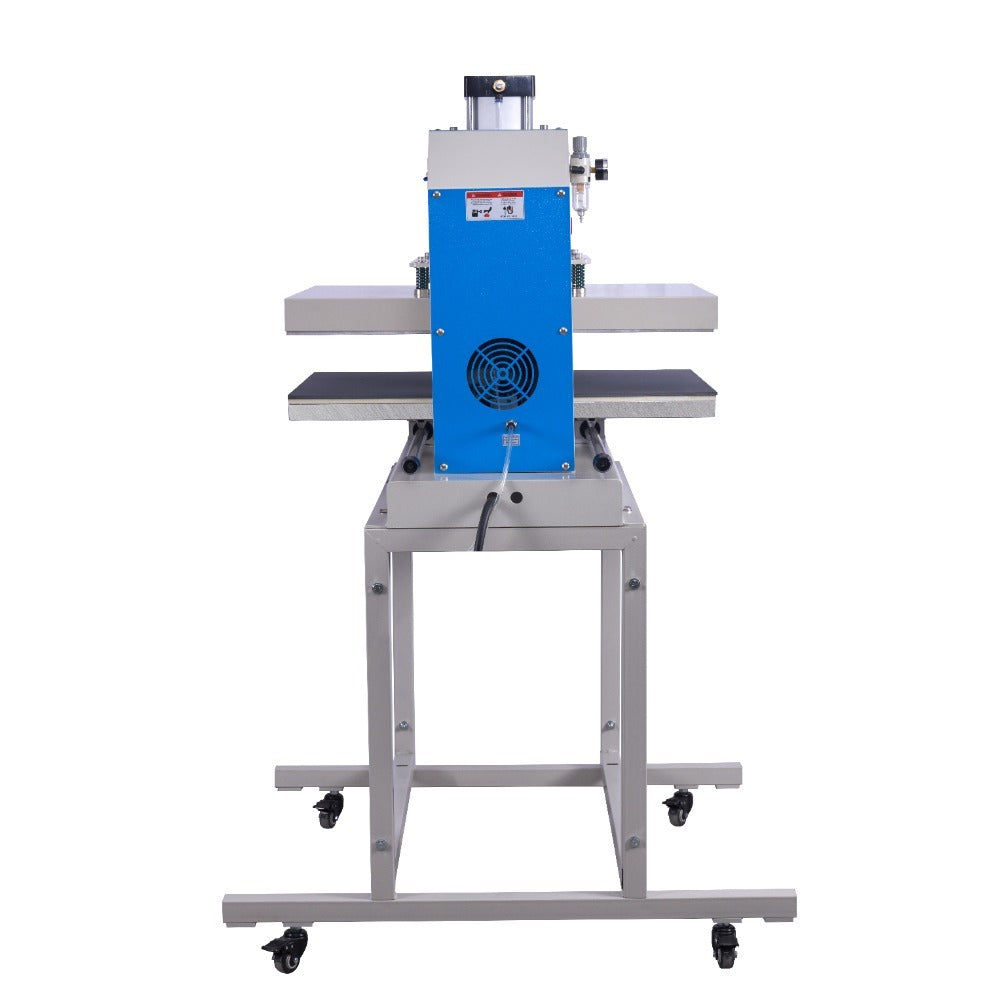

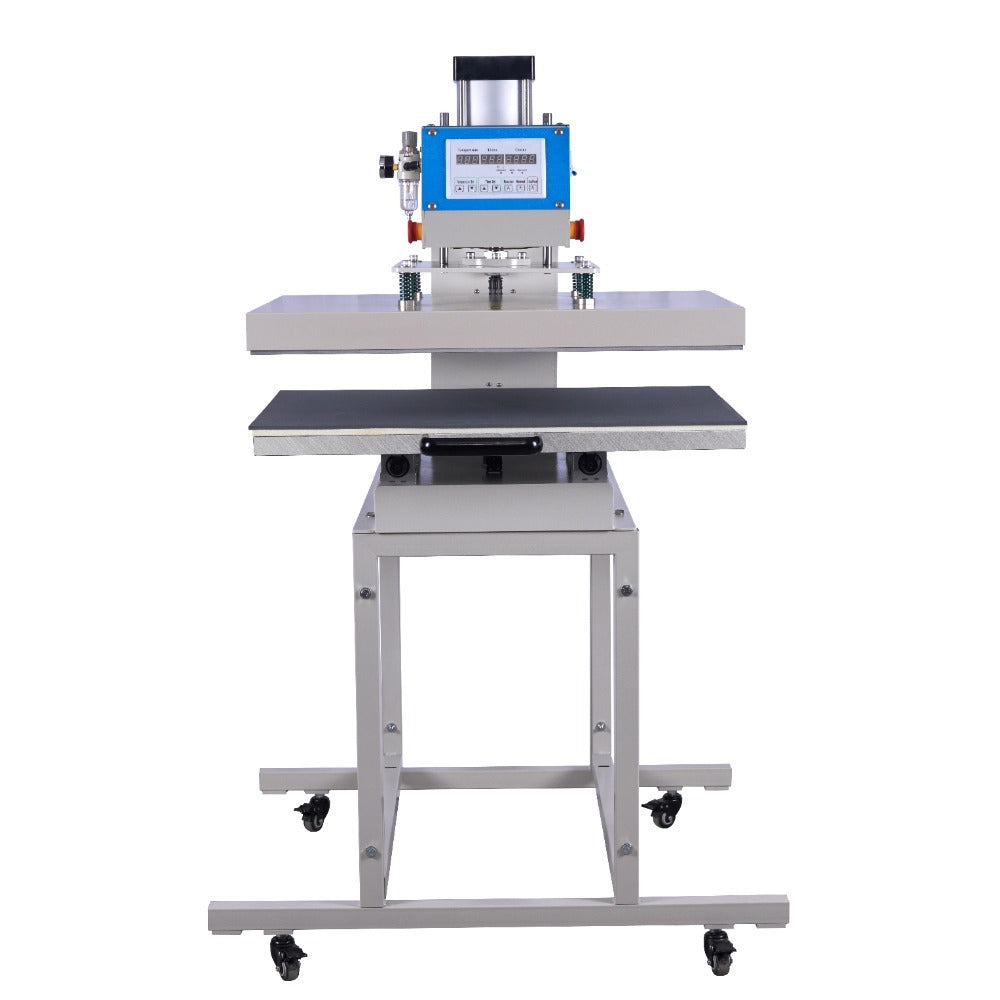

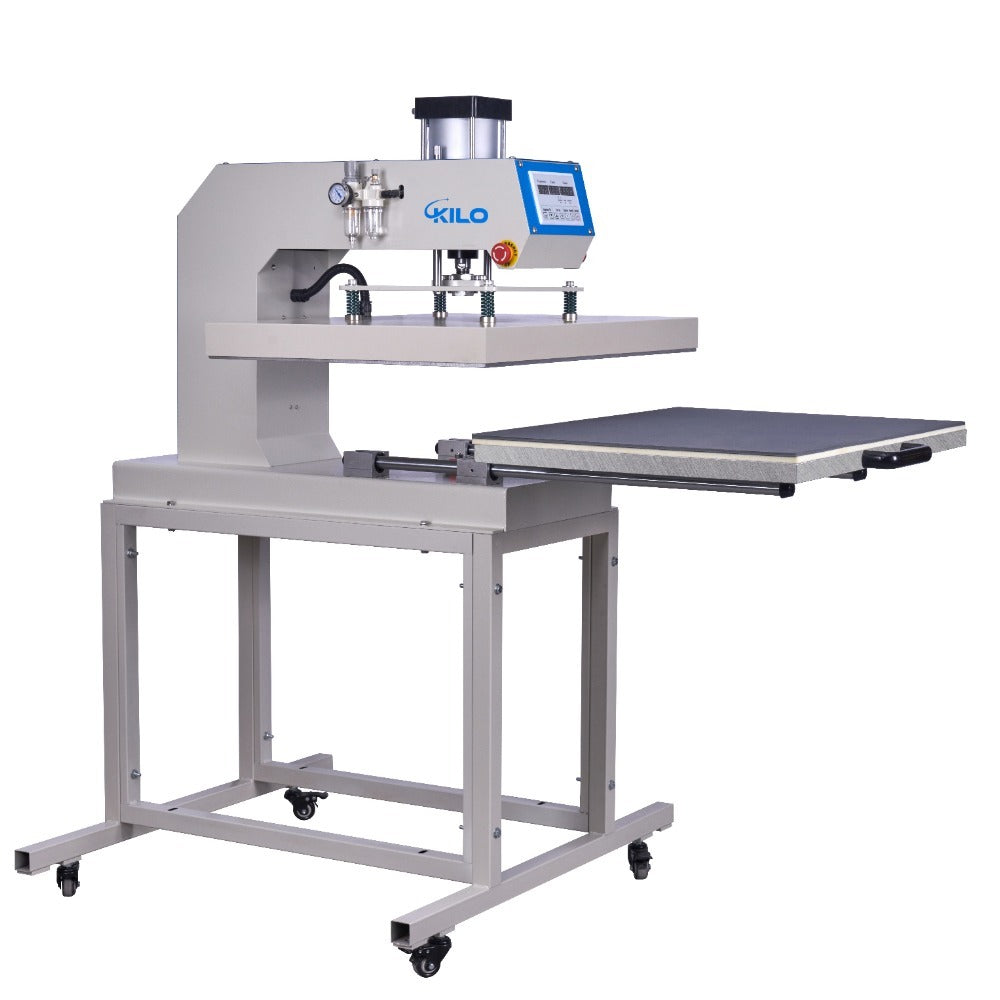

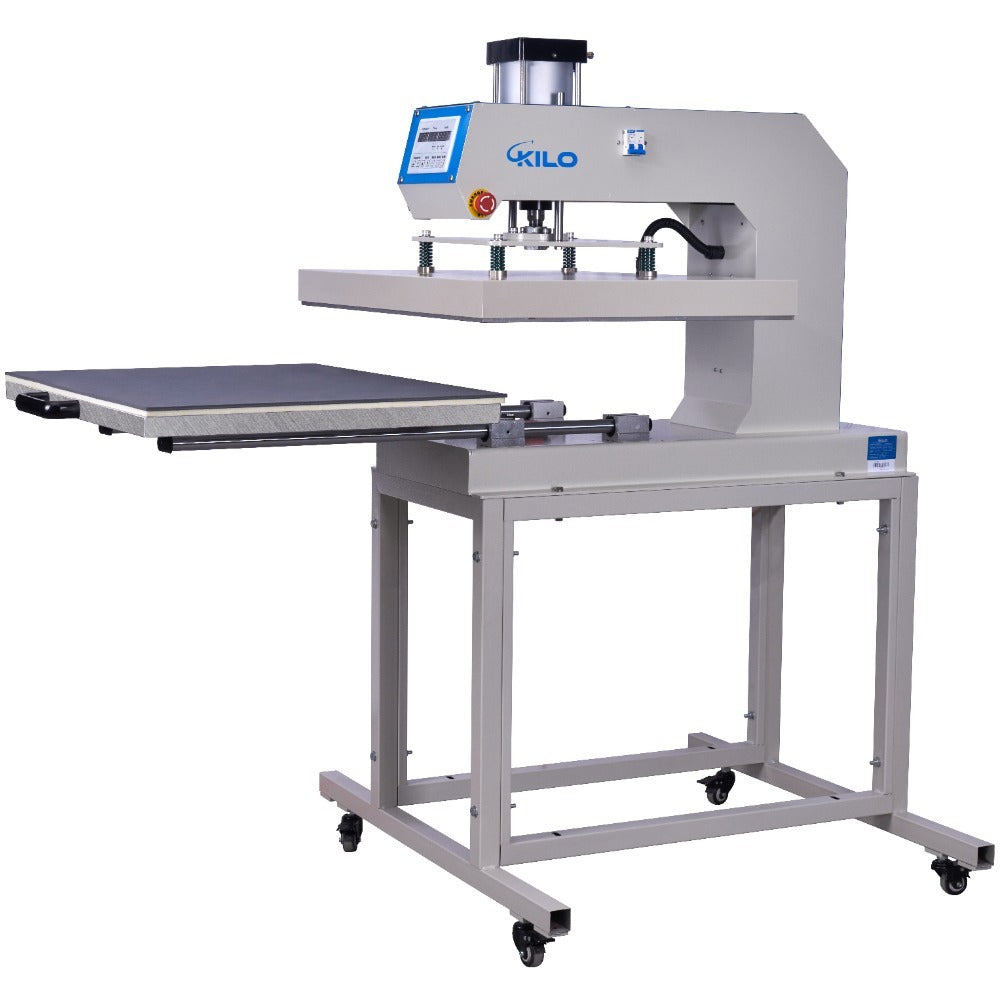

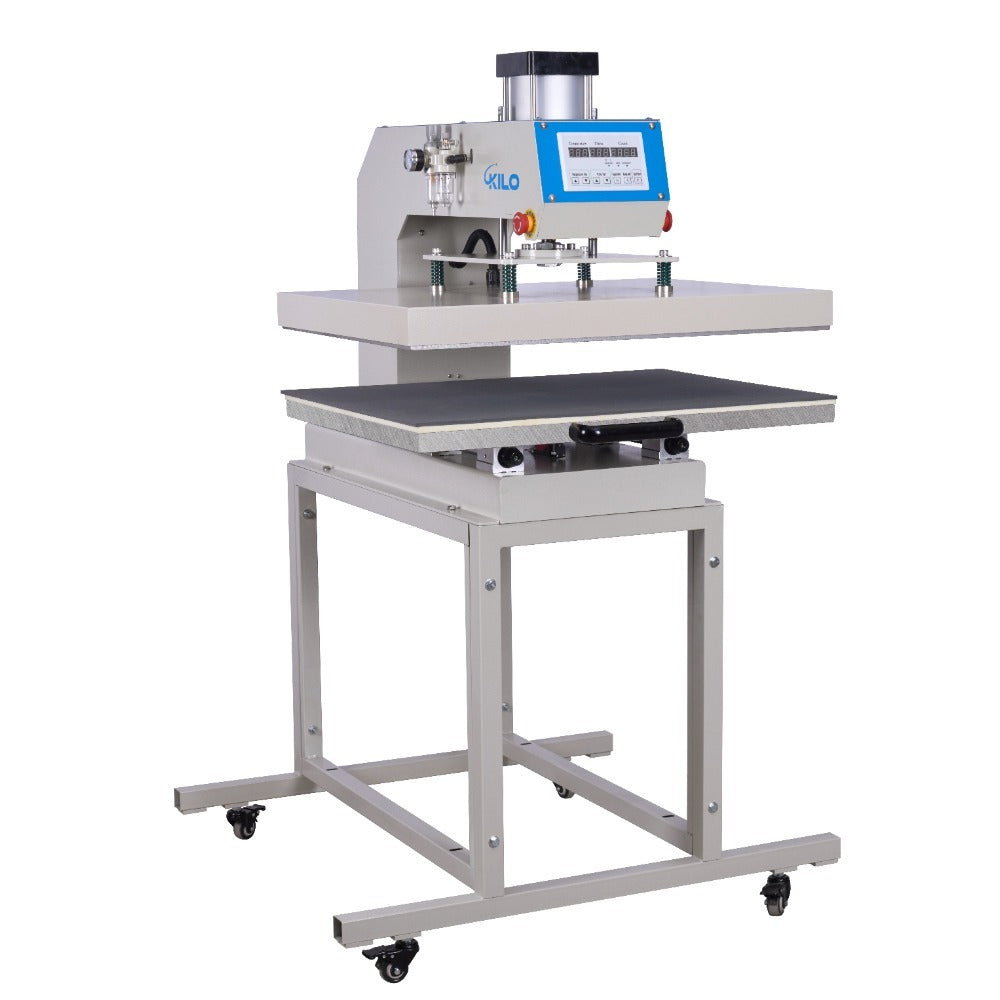

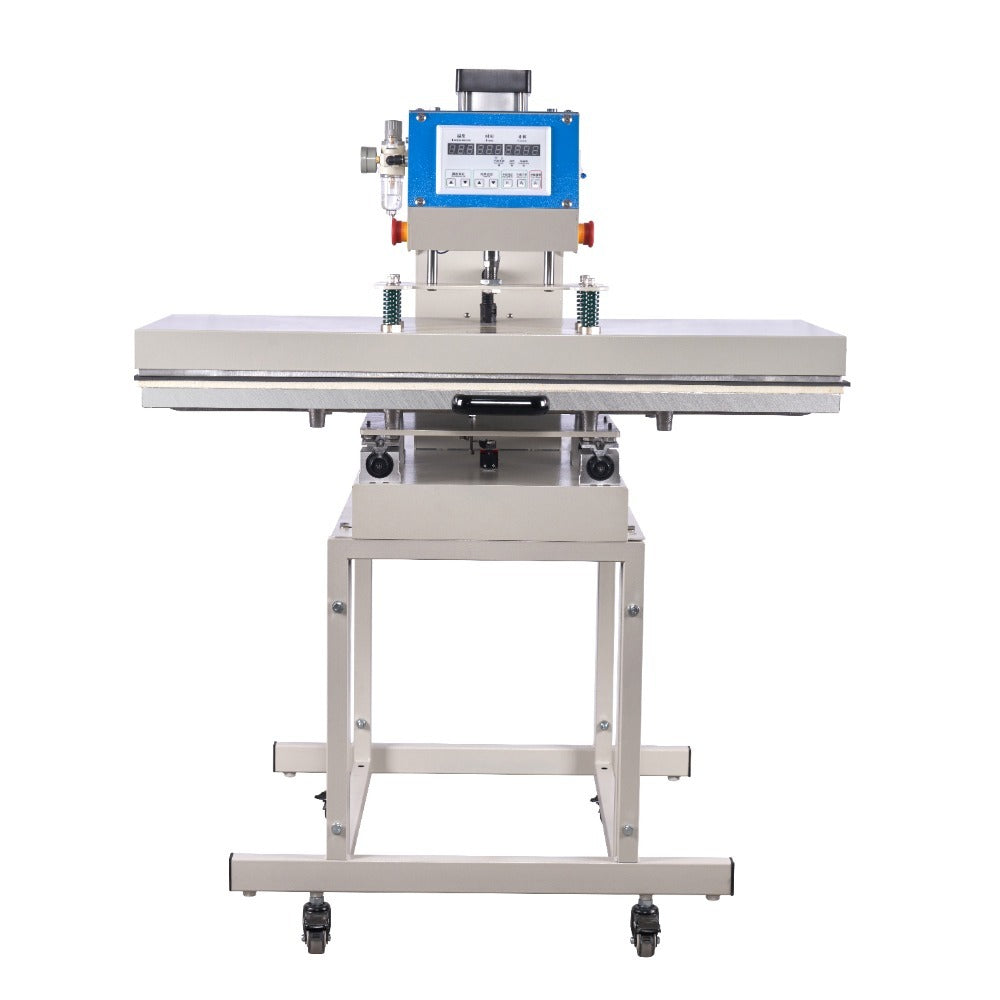

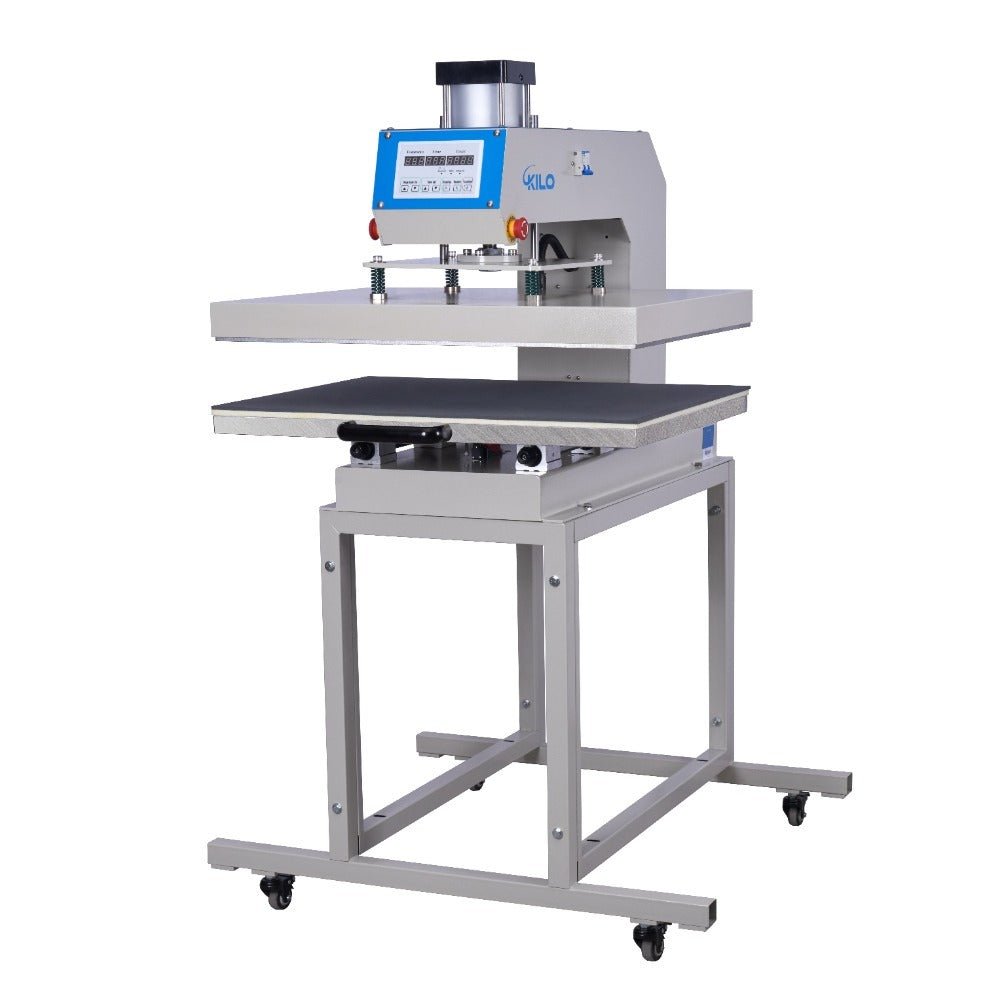

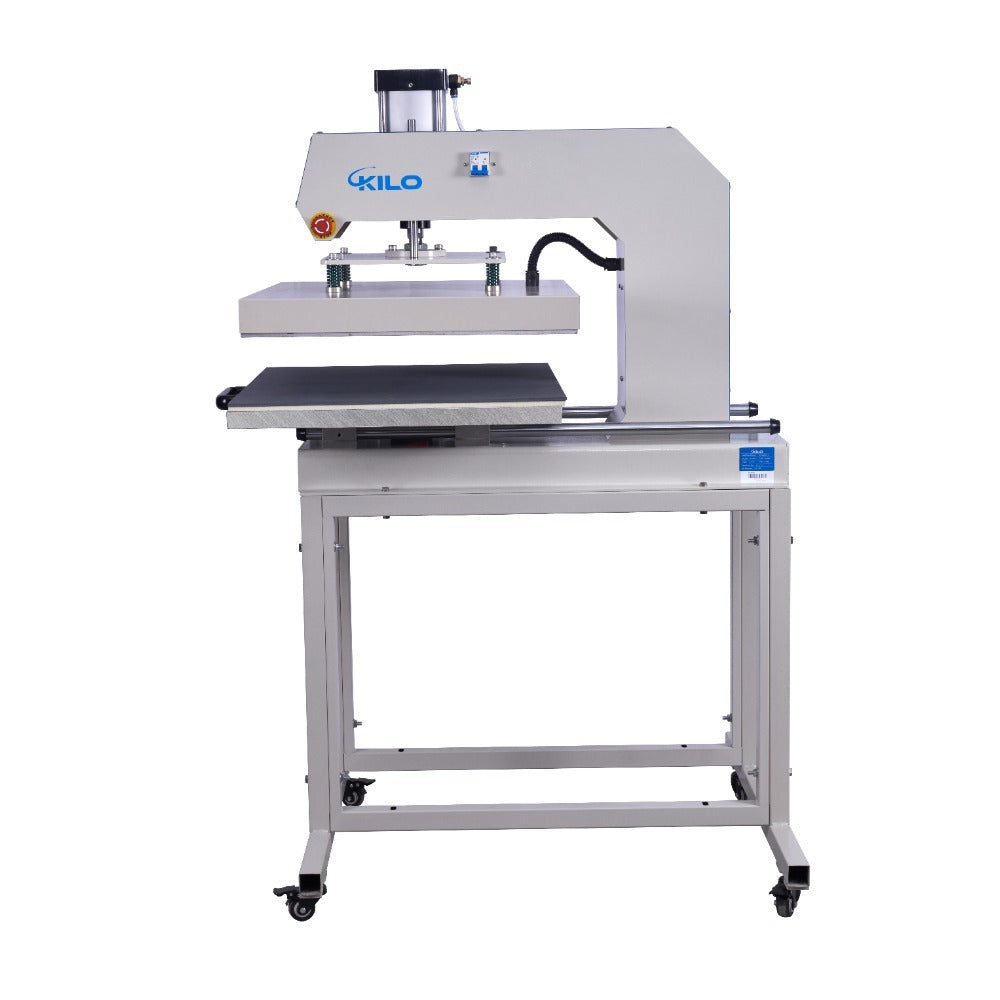

24x32 Large Format Single Station Pneumatic Heat Press Machine 220V,6000W (No Plug)
24x32 Large Format Single Station Pneumatic Heat Press Machine 220V,6000W (No Plug)
Regular price
$2,868.56
Sale price
$2,868.56
Regular price
$1,914.87
Specifications
| Place of Origin | China |
| Main Color | Blue+Grey |
| Main Material | Aluminium |
Dimensions & Weights
| Assembled Length (in.) | 40.00 |
| Assembled Width (in.) | 32.00 |
| Assembled Height (in.) | 58.00 |
| Weight (lbs) | 381.47 |
Product Features
- 1. Full digital integrated display control, temperature, time, counting
- 2. Aluminum heat plate with die casting heating pipe
- 3. High accuracy of signal indication when press process is completed
- 4. 2.36'' pressure adjustable range can process a wider range of products.
- 5. Multiple time settings heat press machine
- 6. Down-sliding heat plate head design
- 7. Easily adjust the certain pressure
- 8. Powered by an air compressor ( not included)
Description
Product Description
1. Heat press machine is full digital integrated display control;
2. High accuracy of signal indication when press process is completed;
3. Heating tube and heating plate are integrated into a whole part, short heating time, safe, durable and with even temperature;
4. Heat press machine pressure can be adjusted up to 8kg/cm², It adopts connected track which is stable and convenient for sliding, with high efficiency;
5. Special high temperature cloth for hot stamping machine covered
6. Lower plate covered with 6MM silicon mat and 1CM sponge to heat even heating pressure
7. Heat press machine is automation print once backside inductive screw touched
8. Left and right side bearings parallelly move the heat press machine
General Pressure for 0.4Mpa-0.6Mpa Heat Printing
The heat press machine can adjust to different pressure as needed

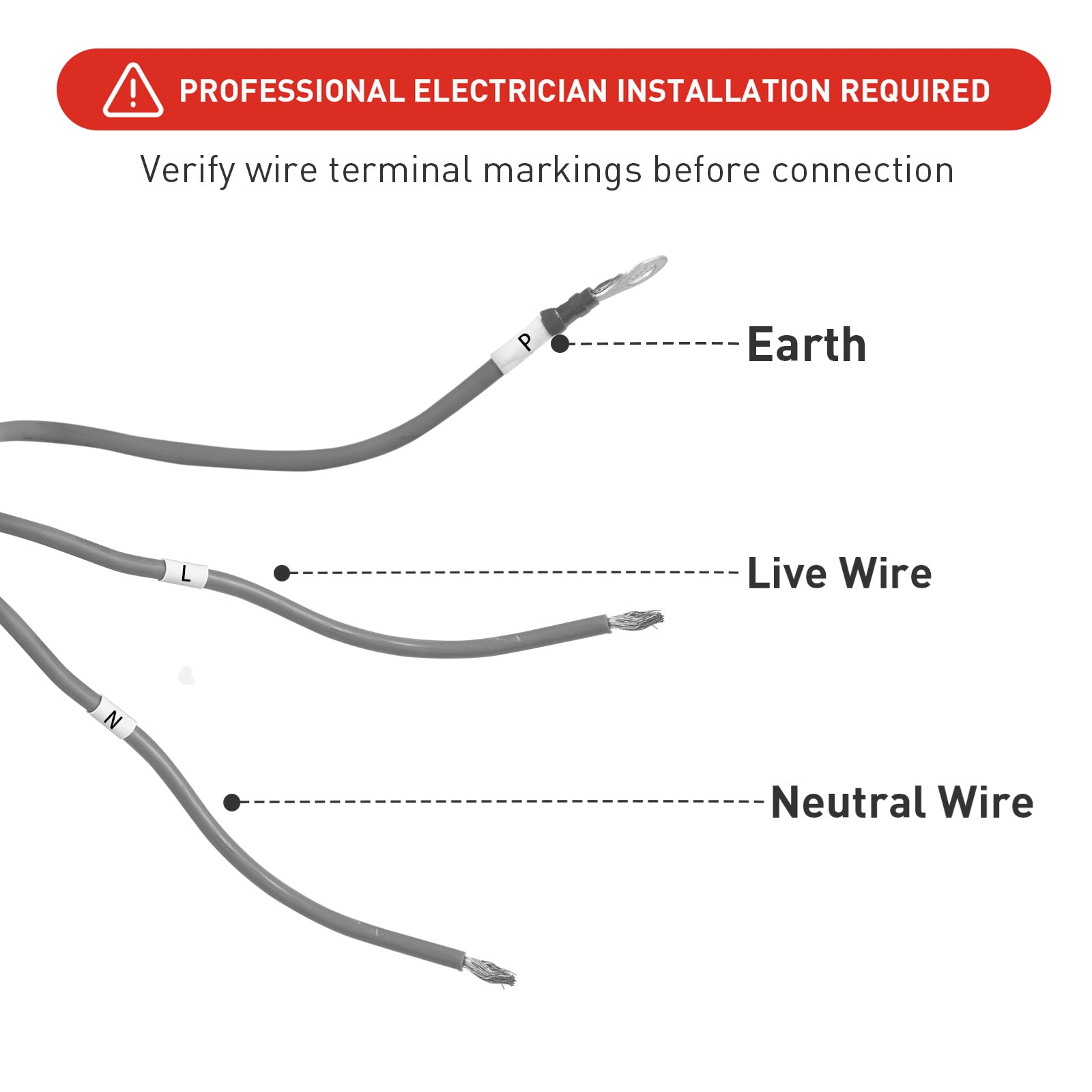

Professional electrician installation required.
Verify wire terminal markings before connection: PE is Earth, L is Live Wire, N is Neutral Wire.
Remarks:
Items numbered 1, 2, 3, 4, and 5 are additional accessories intended for replacement. Please ensure that they are stored or maintained appropriately.
Technical Details
| Voltage(V): | 220V single phase |
| Power(KW): | 6 |
| Temperature(?): | 0-299 |
| Delaying Time(S): | 1-999 |
| G.W.(LB): | 403.5 |
| Packing size(in'): | 45.3'' x 32.3'' x 36.6'' |
| Accept Thickness: | Max. 2.36'' Thick Items |
| Range of Application: | Pure Cotton, Polyester, Chemical Fiber, Pearl Board, Metal Pendant, Mousepad, Vitrolite, Ceramics |
| Heat Plate Size: | 24' x 32'' (60 x 80cm) |
Time Requirements of Different Materials
| Pure cotton | 15s-25s |
| Polyester | 40s |
| Chemical fiber | 10s-40s |
| Pearl board | 60s-100s |
| Metal pendant | 60s |
| Mousepad | 50s |
| Vitrolite | 180s |
| Key ring pendant | 100s |
| Ceramics | 180s |
| Material | Temperature |
| Pure cotton | 356℉-428℉ (180℃-220℃) |
| Polyester | 356℉ (180℃) |
| Chemical fiber | 302℉-356℉ (150℃-180℃) |
| Pearl board | 356℉ (180℃) |
| Metal pendant | 356℉ (180℃) |
| Mousepad | 374℉ (190℃) |
| Vitrolite | 392℉ (200℃) |
| Ceramics | 356℉-428℉ (180℃-220℃) |
Air Compressor Details: (Need buy extra)
| F.A.D/Max Pressure(m³/Min/MPa): | 2.2/0.8 |
| Lubricant Oil (Liter): | 10 |
| Voltage: | 110V/60HZ, 220V/single phase |
| Power (KW): | 15 |
| Starting Mode: | Variable Frequency Start |
| Outer Pipe Diameter (inch): | Rp3/4 |
