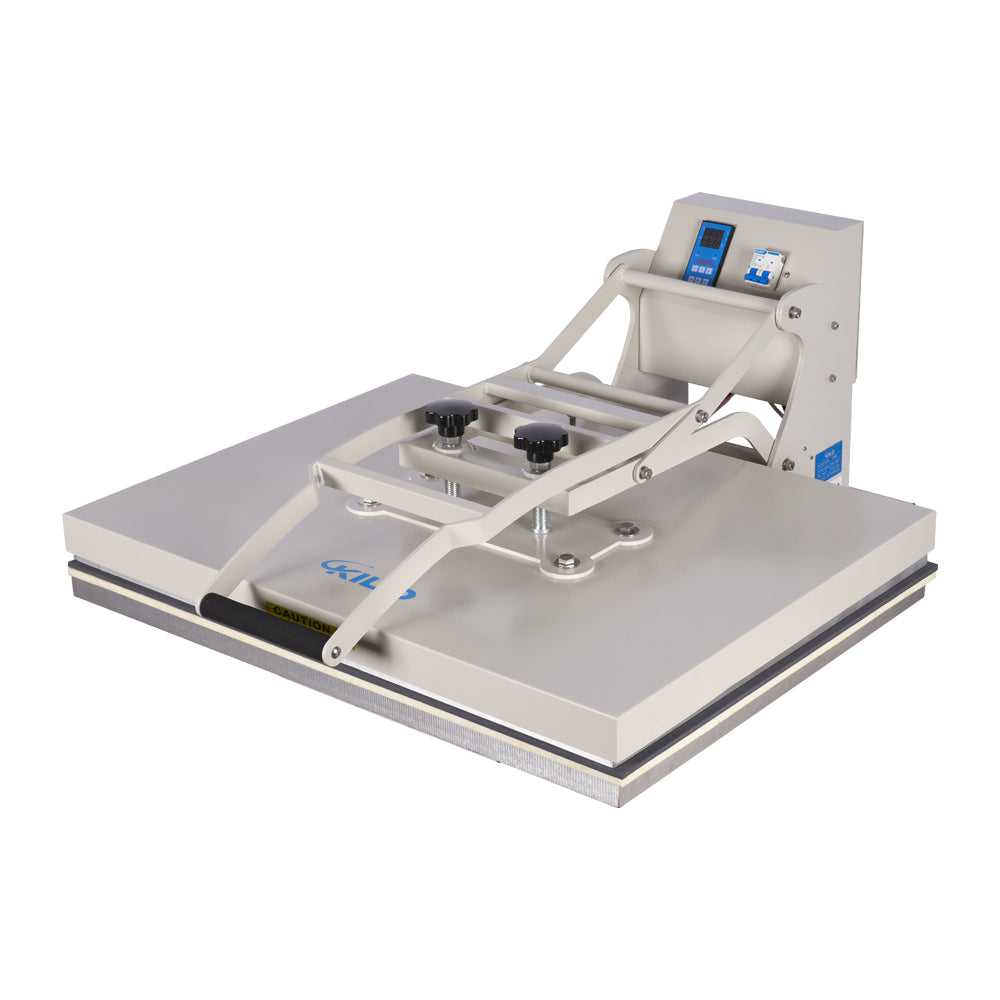

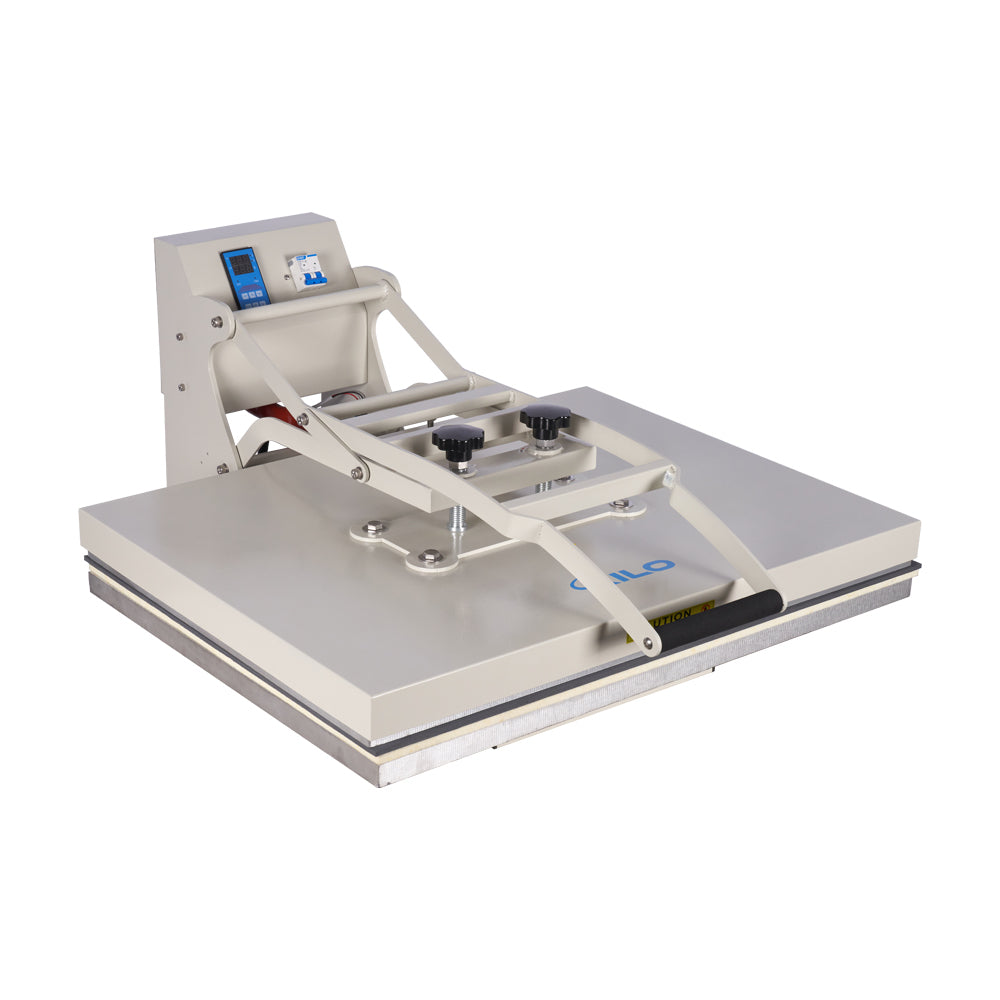

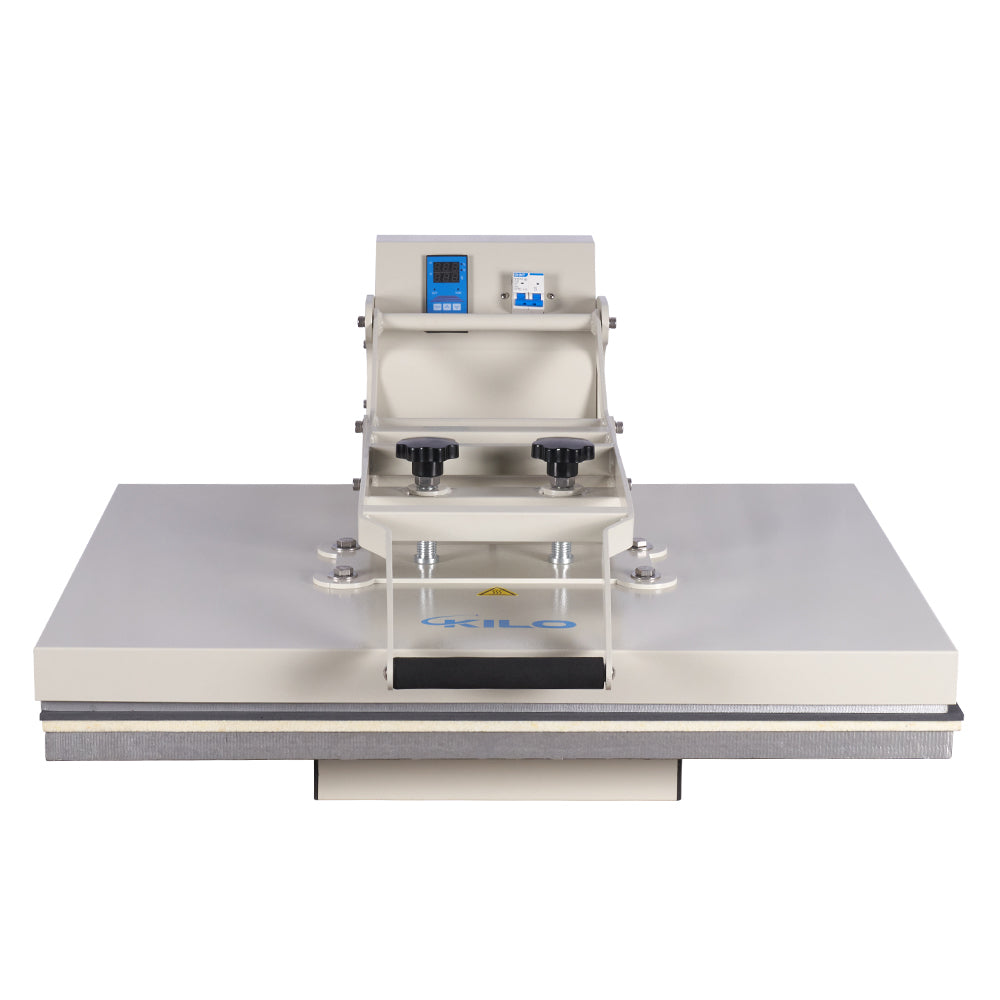

24x32 Large Format Manual Heat Press Machine 110V,4500W (No Plug)
24x32 Large Format Manual Heat Press Machine 110V,4500W (No Plug)
Regular price
$2,699.22
Sale price
$2,699.22
Regular price
$4,571.80
Specifications
| Place of Origin | China |
| Main Color | Grey |
| Main Material | Aluminium |
Dimensions & Weights
| Assembled Length (in.) | 31.50 |
| Assembled Width (in.) | 32.20 |
| Assembled Height (in.) | 28.00 |
| Weight (lbs) | 194.04 |
Product Features
- 1. The heat press machine is digital touch screen controlled,the votaloge is 110V, without plug
- 2. Easily adjust the heat press machine certain pressure
- 3. Best selling heat press model for heat transfer and sublimation
- 4. Special high temperature cloth for hot stamping machine covered
- 5. Lifetime factory on-line service
- 6. Large format die cast aluminium base plate
- 7. Heat press machine used for cloths Sublimation
- 8. Heat press machine with optional Infrared positioning makes more sccurate for small items printing
- 9. High accuracy of signal indication when press process is completed
Description
Manual Heat Press Machine
1. Heat press machine suitable for larger area heat transfer press operations

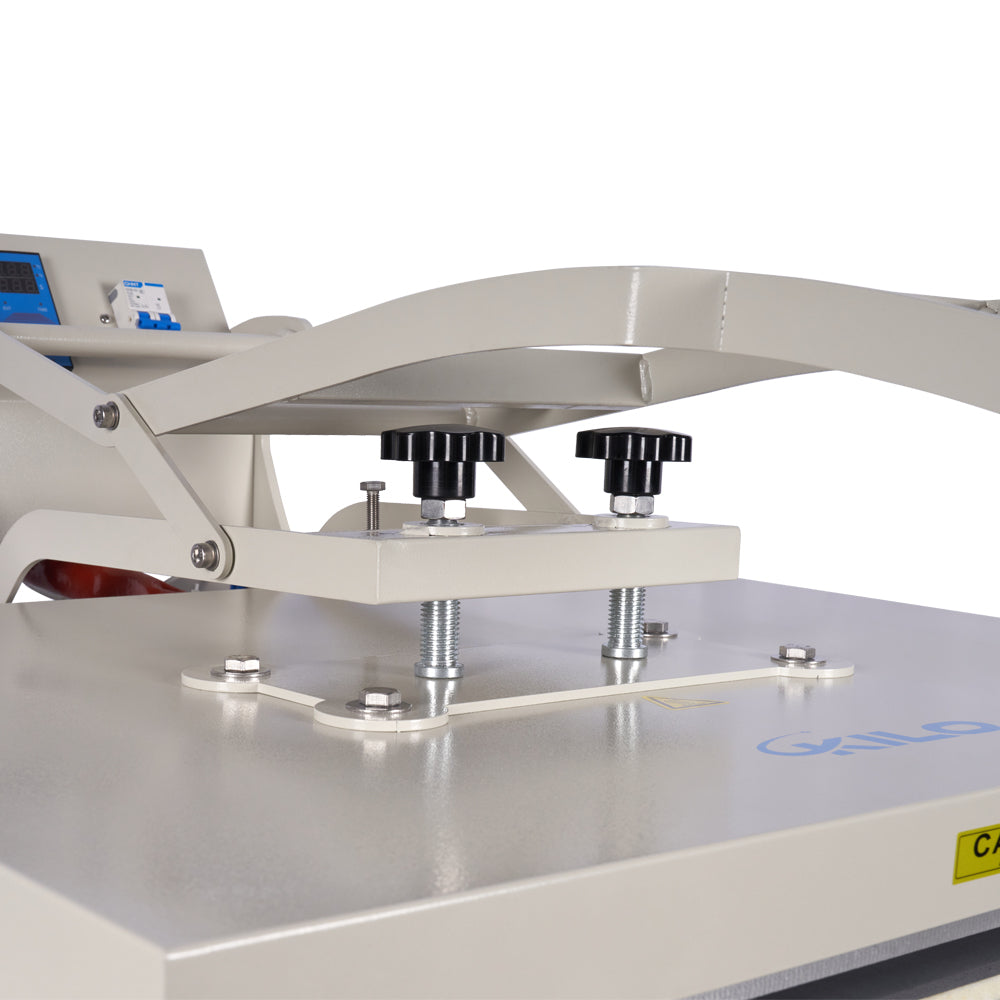

2. The heating plate adopts the structure of double pressure rods and double helical buttons, which can adjust the pressure more evenly and more precisely
3. The required pressure ensures the good press between the upper and lower plates, with better pressing effect
4.For T-shirts, mouse pads, license plates, magnetic material and more
5. Special high temperature cloth for hot stamping machine covered
6. Large format heat press machine is optional Infrared ray positioning
7. High accuracy of signal indication when press process is completed
High Pressure Manual Heat Press Machine
The heating plate adopts special ultra-precision wire tube technology, which can effectively ensure the temperature Equilibrium and peace;
The surface of the heating plate is sprayed with Special high temperature cloth, which can effectively ensure the surface of the heating plate smooth surface, durable;
Full digital temperature and time display, temperature error(±2℃);
Designed according to human engineering , machine is easy to operate with even pressure

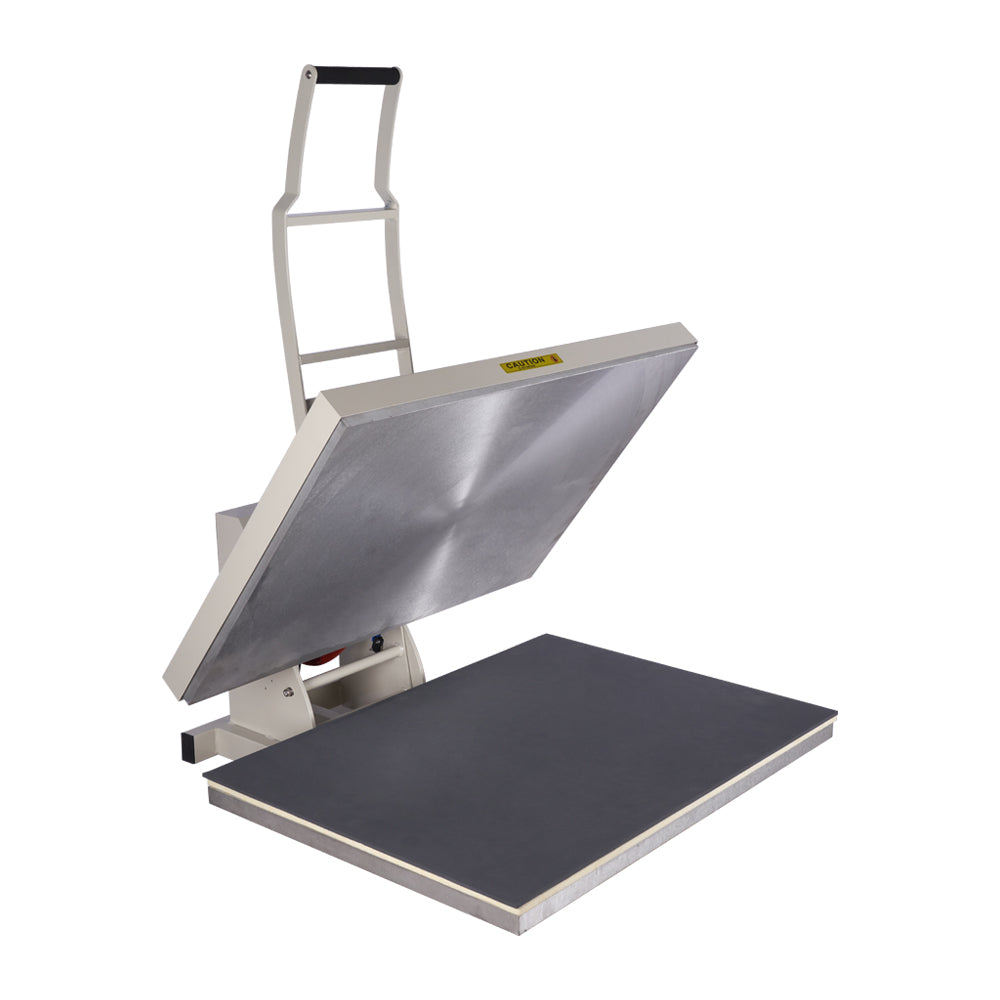

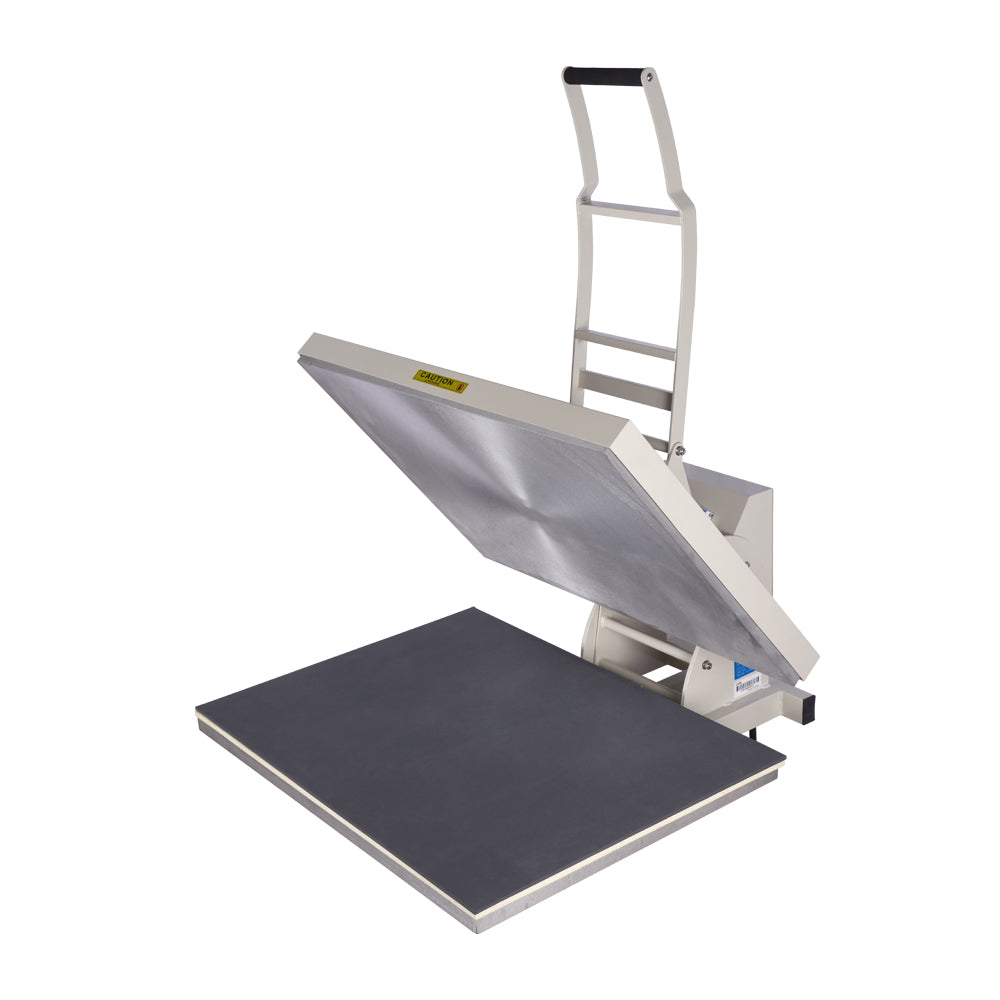

Open and close heating plate, easy to use
Pressure is adjusted by connecting rod, the adjustment torque is small and the range is large
Remarks:
Additional accessories intended for replacement. Please ensure that they are stored or maintained appropriately.
Raw Materials Cutting
Raw materials preparing for the production
Laser Cutting
Use laser cutting machine to cut steel plate on raw material
Round Tube Cutting
Cutting the round tube into small spares
Steel Plate Bending
According to the model, bend and shape the raw section steel
Welding
Container Loading
Assembling
.
QC Inspection
.
Packing
.
.
.
.
.
.
.
.
.
Technical features:
| Voltage(V): | 110V / Single Phase |
| Power(KW): | 4.5 |
| Temperature(℃): | 0-299 |
| Delaying time(S): | 1-999 |
| G.W.(LB): | 205.1 |
| Packing Size(in): | 40.9X33.1X20.9 |
| Accept Thickness: | Max. 2.36'' Thick Items |
| Range of Application: | Pure Cotton, Polyester, Chemical Fiber, Pearl Board, Metal Pendant, Mousepad, Vitrolite, Ceramics |
| Heat Plate Size: | 24 x 32'' (60 x 80cm) |
| Pure Cotton Time: | 15s-25s |
| Polyester Time: | 40s |
| Chemical Fiber Time: | 10s-40s |
| Pearl Board Time: | 60s-100s |
| Metal Pendant Time: | 60s |
| Mousepad Time: | 50s |
| Vitrolite Time: | 180s |
| Ceramics Time: | 180s |
Temperature Requirements of Different Materials
| Pure cotton | 356℉-428℉ (180℃-220℃) |
| Polyester | 356℉ (180℃) |
| Chemical fiber | 302℉-356℉ (150℃-180℃) |
| Pearl board | 356℉ (180℃) |
| Metal pendant | 356℉ (180℃) |
| Mousepad | 374℉ (190℃) |
| Key ring pendant | 356℉ (180℃) |
| Ceramics | 356℉-428℉ (180℃-220℃) |
