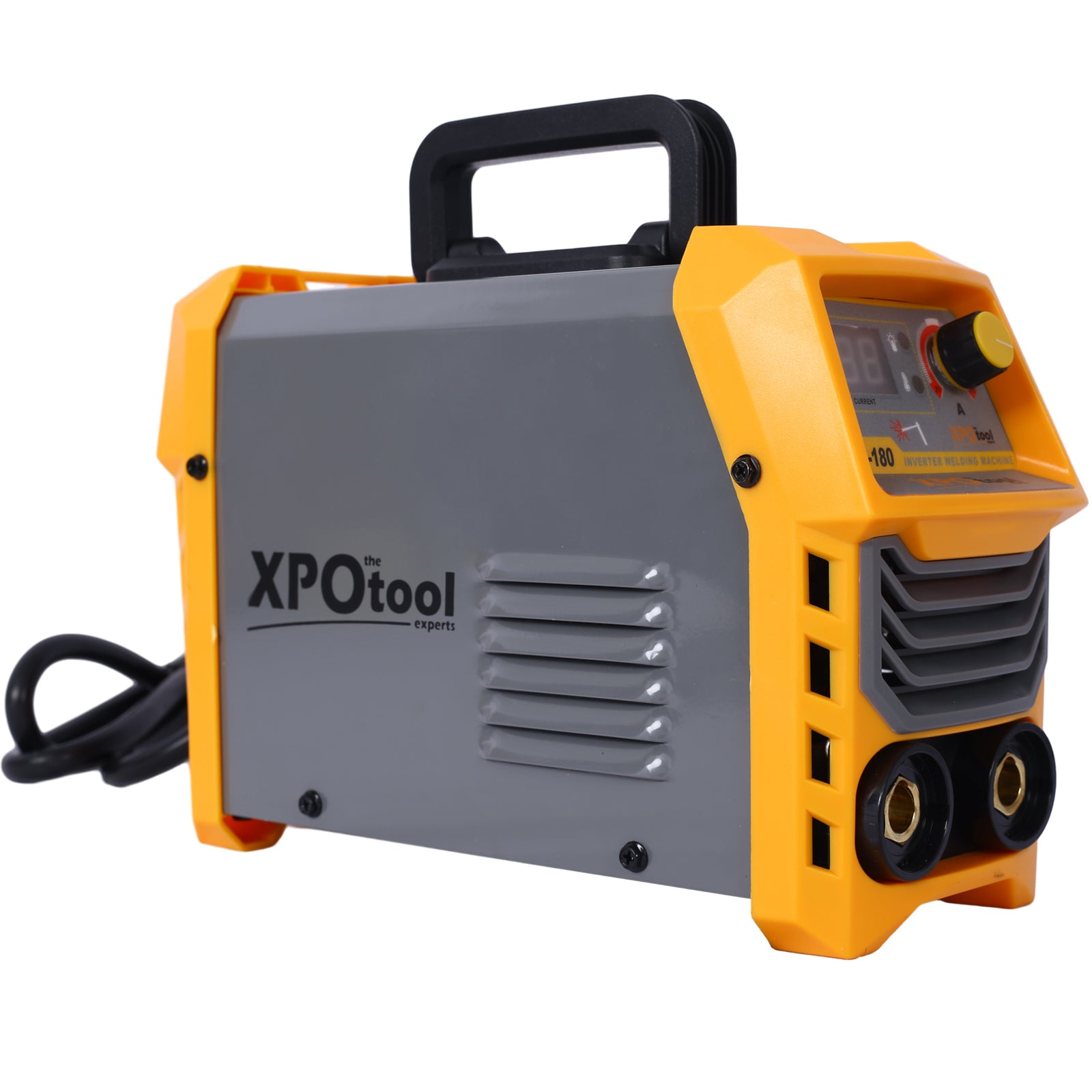

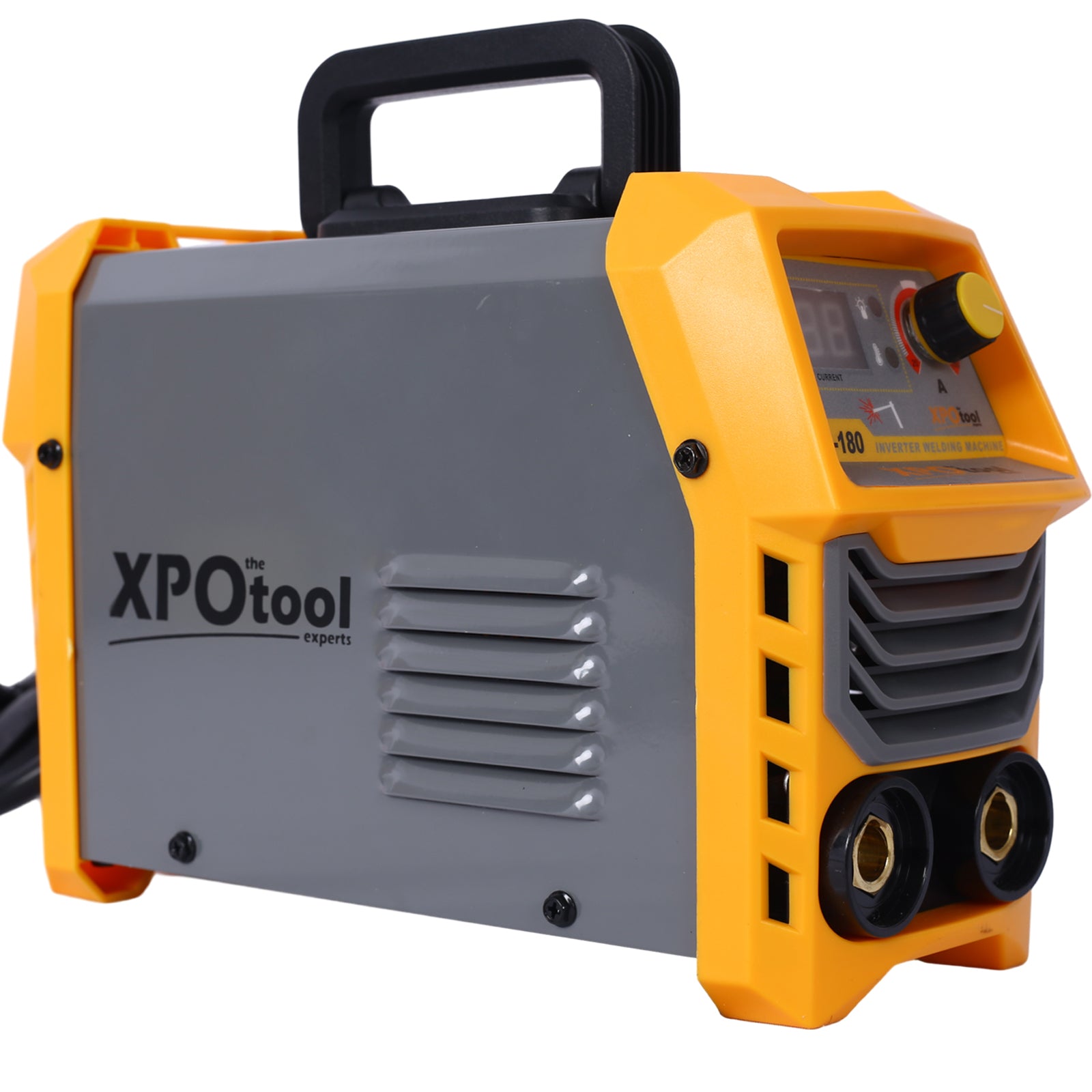

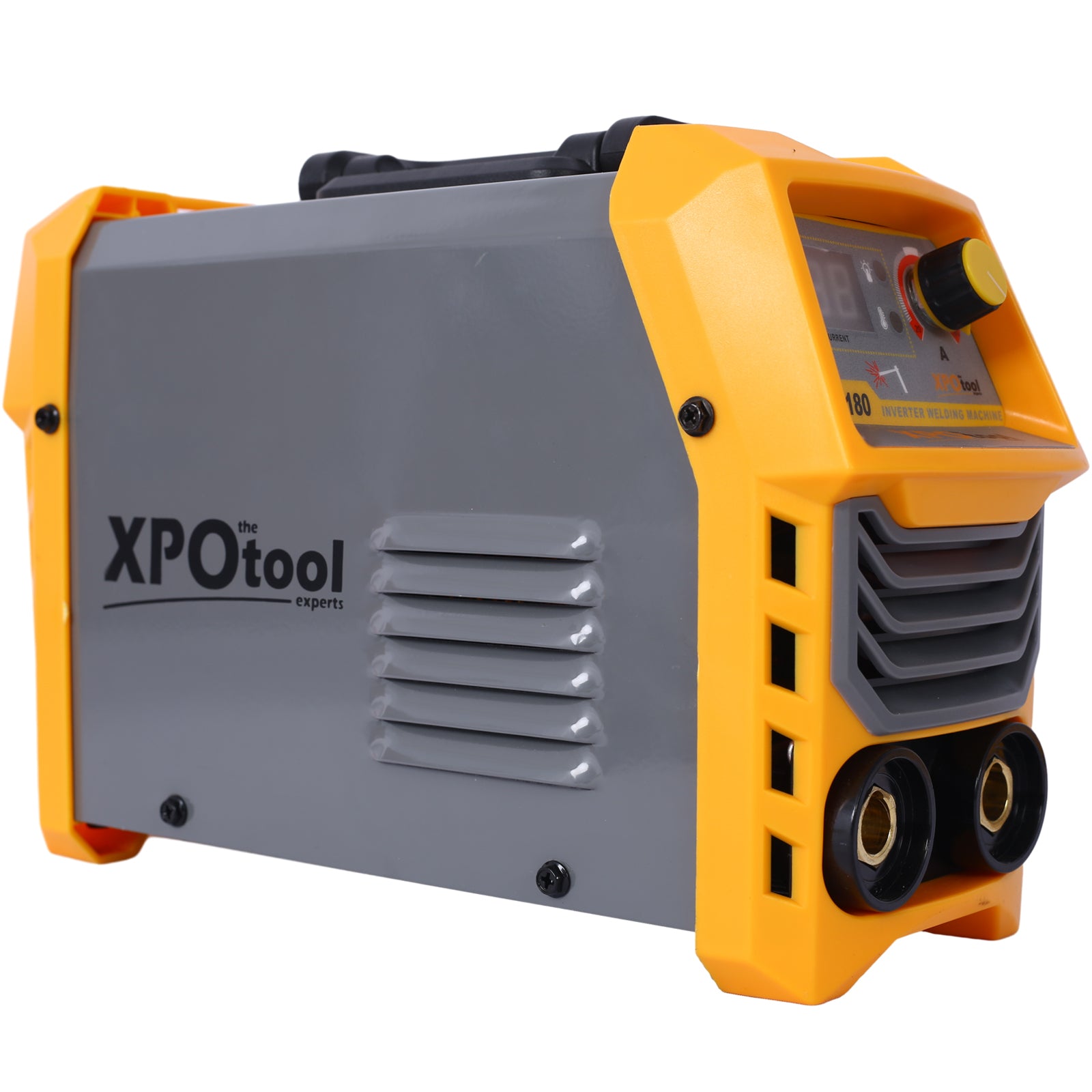

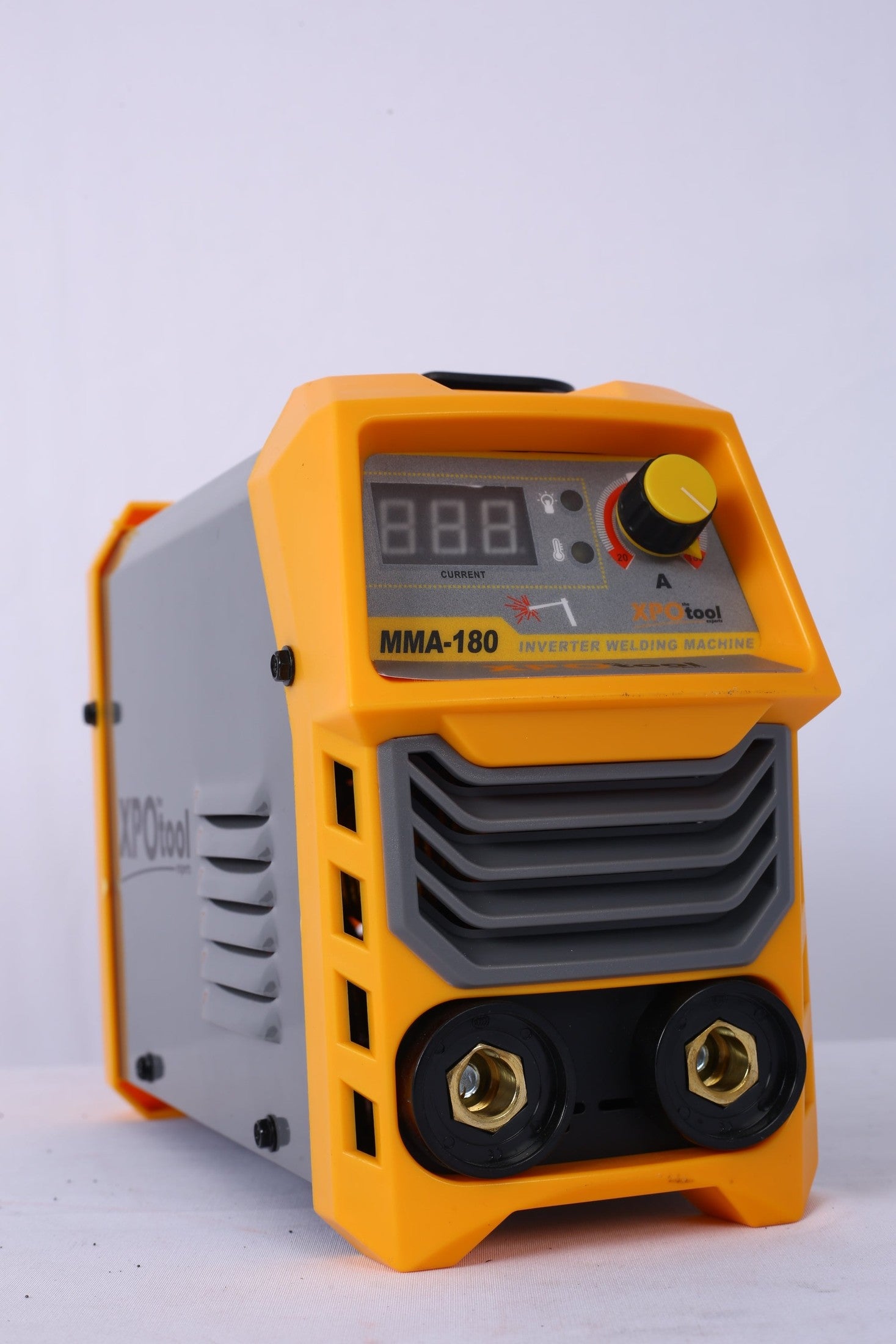

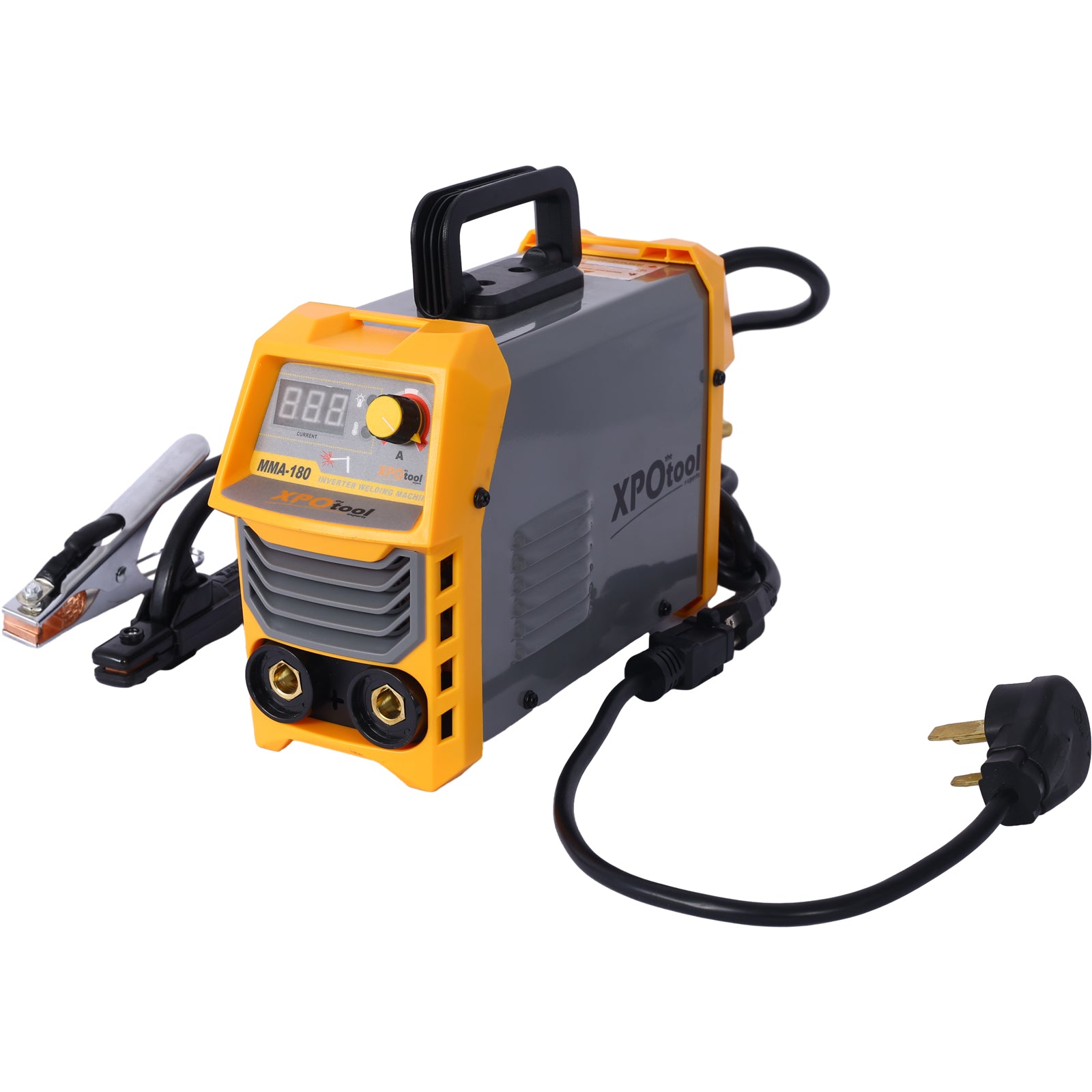

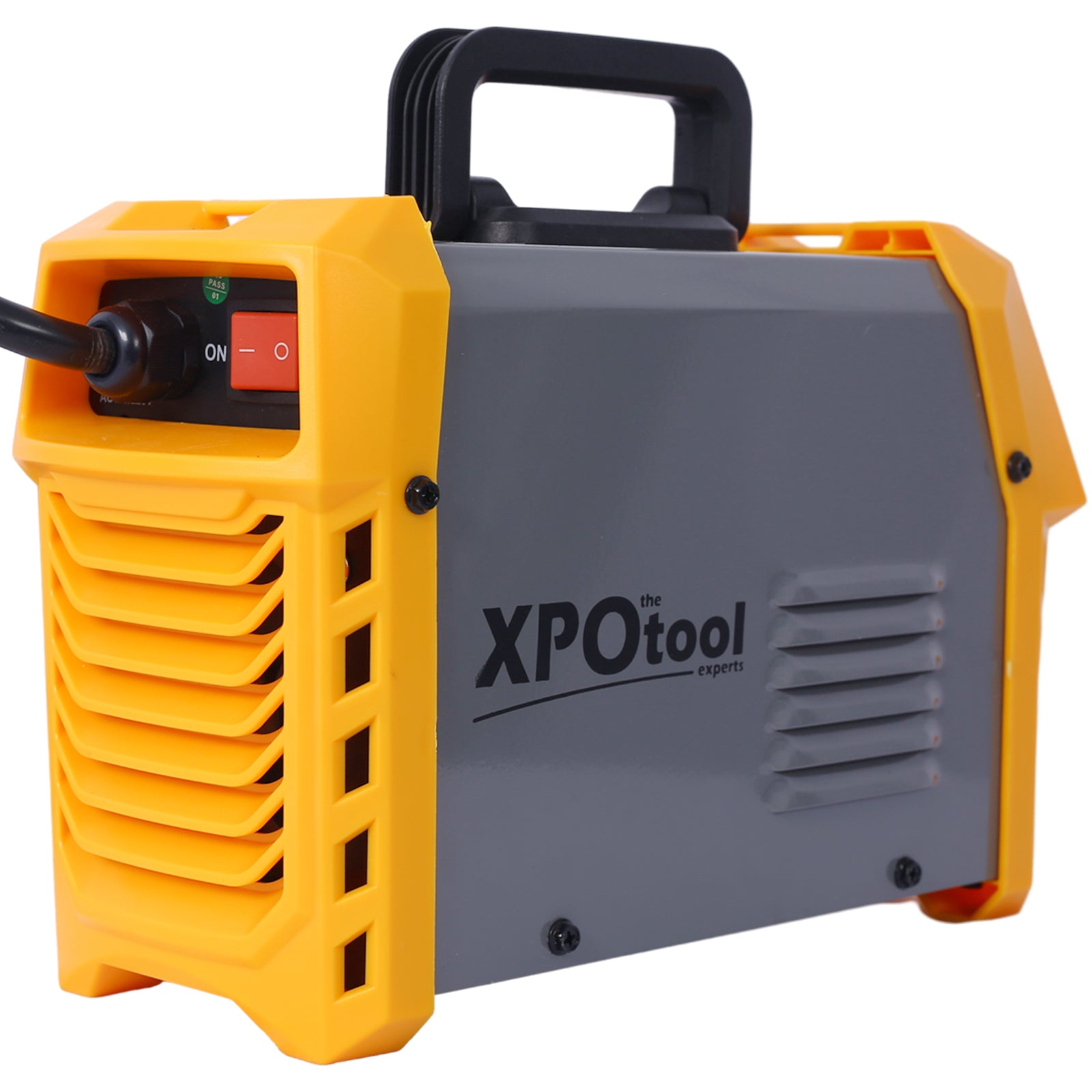

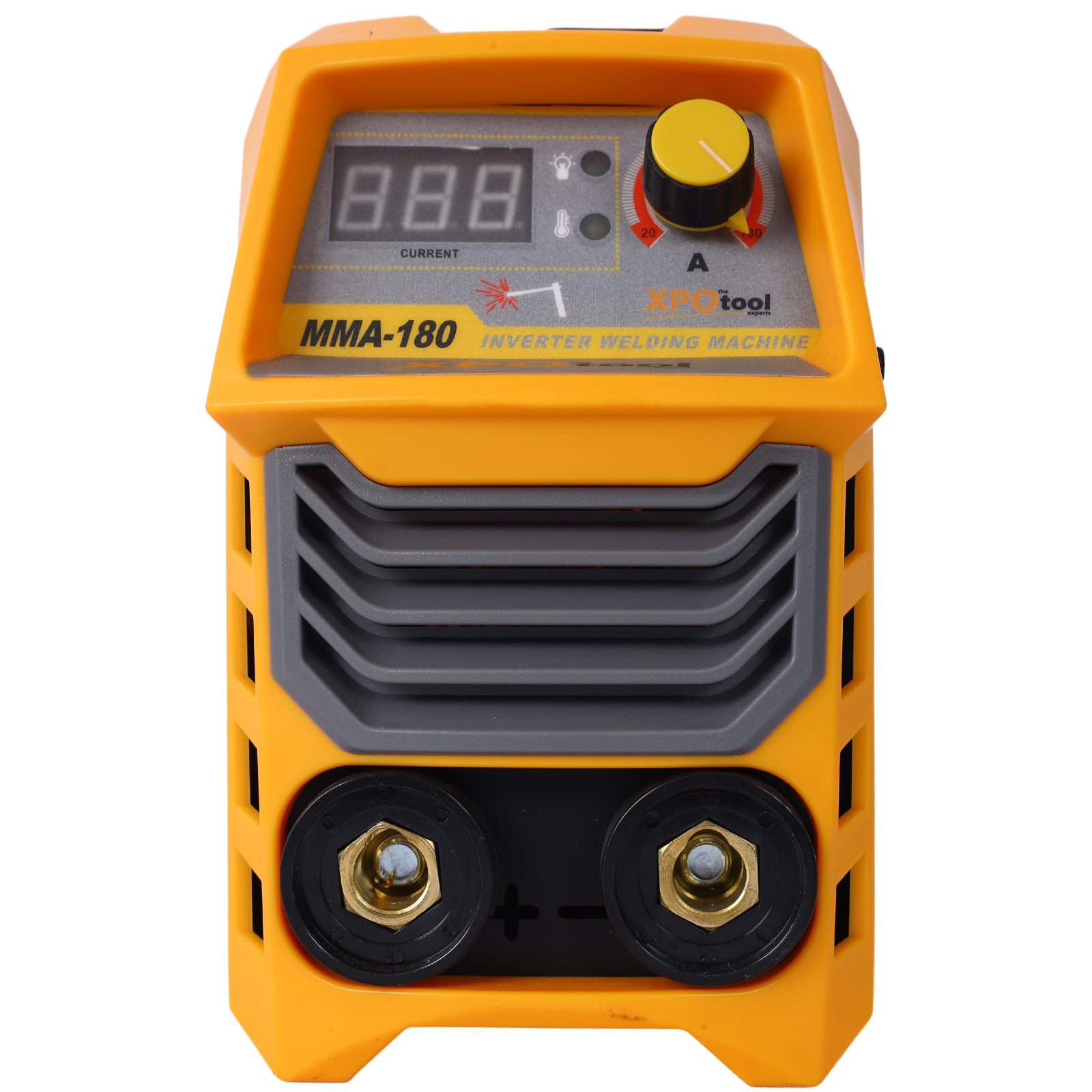

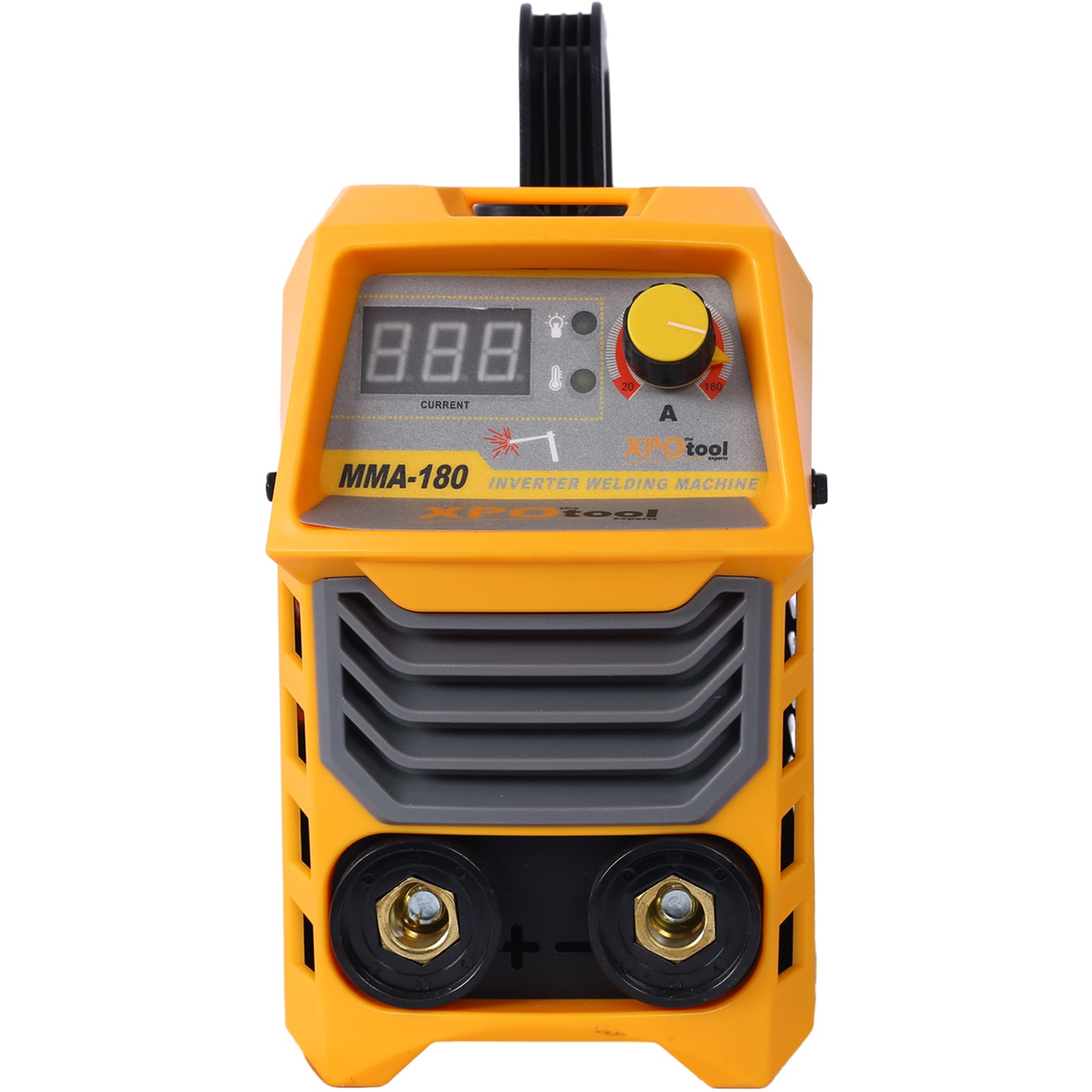

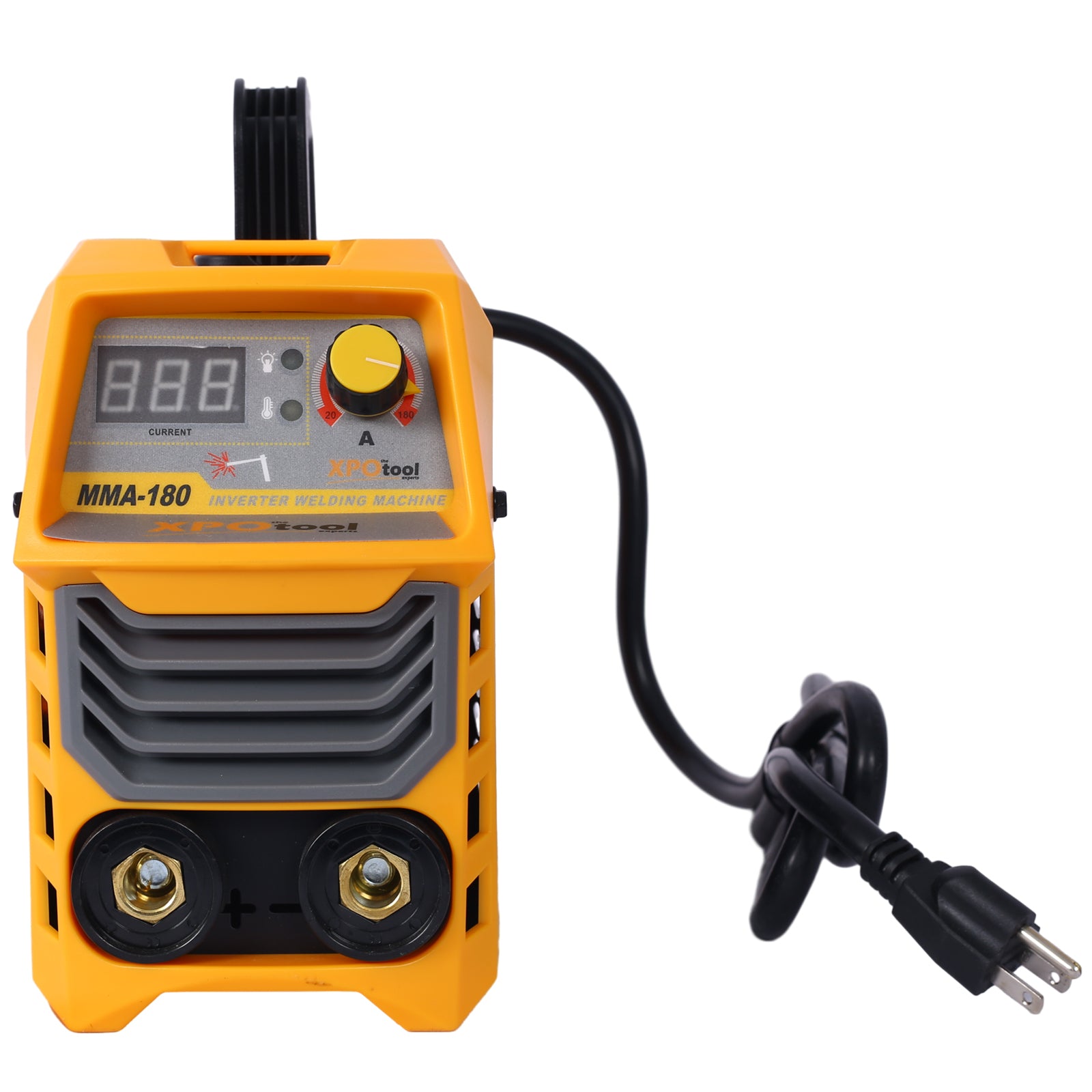

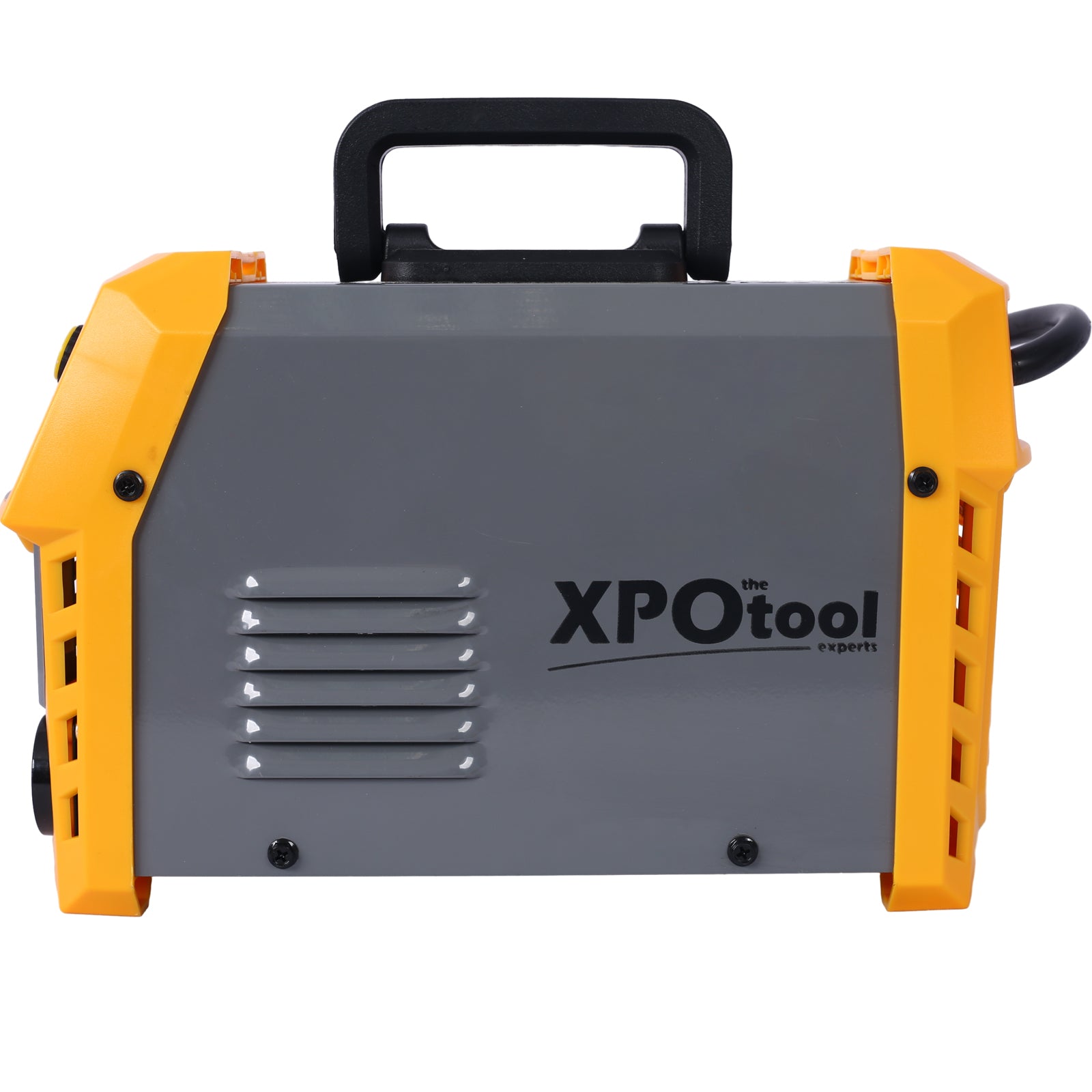

110/220V MMA Welder, 180A Stick ARC Welding Machine IGBT Inverter Digital Display LCD Hot Start Welder with Electrode Holder, Work Clamp, Input Power Adapter Cable Dual Voltage DC
110/220V MMA Welder, 180A Stick ARC Welding Machine IGBT Inverter Digital Display LCD Hot Start Welder with Electrode Holder, Work Clamp, Input Power Adapter Cable Dual Voltage DC
Regular price
$164.44
Sale price
$164.44
Regular price
$246.21
Specifications
| Main Color | Yellow+Grey |
| Main Material | ABS+Steel(Q235) |

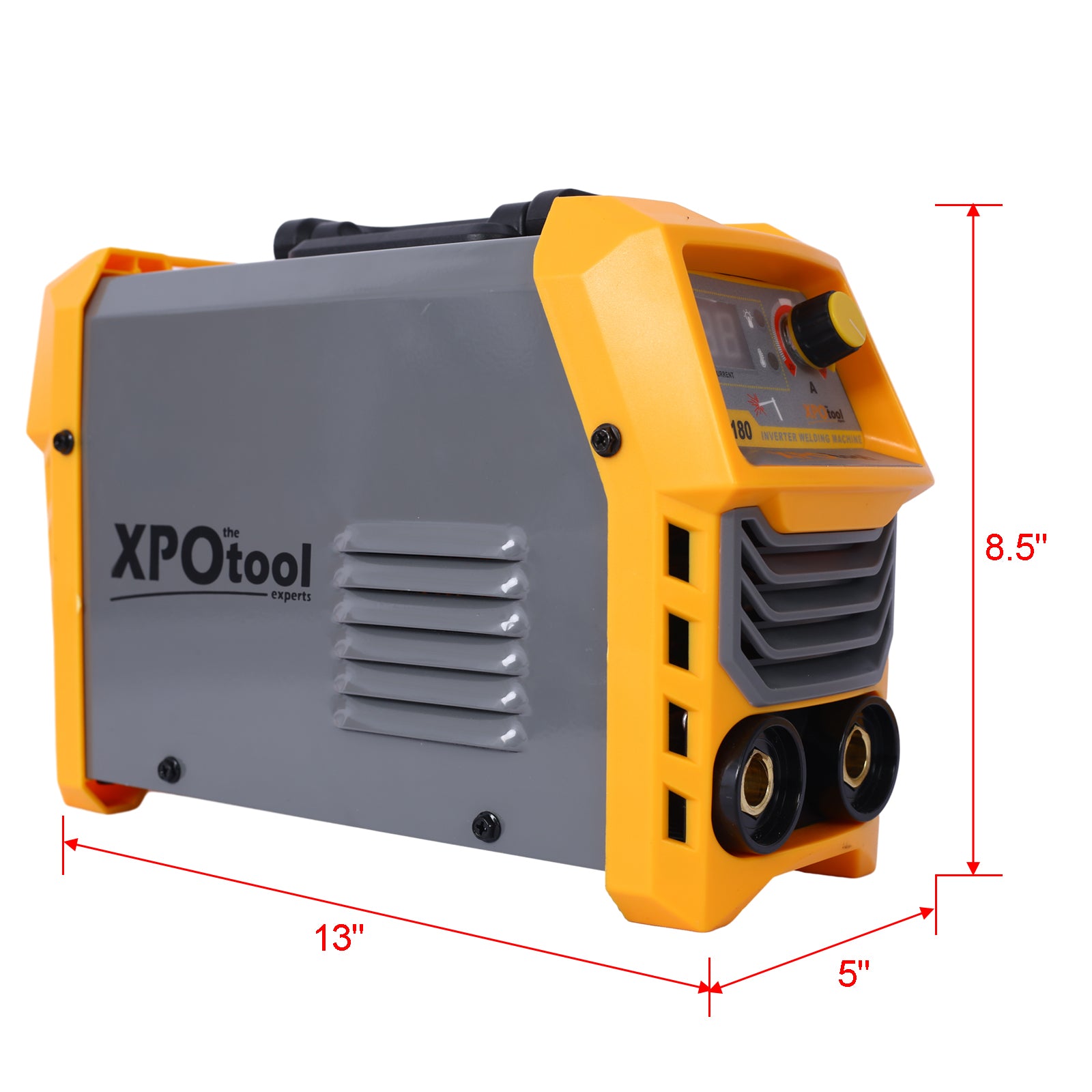

Dimensions & Weights
| Assembled Length (in.) | 13.00 |
| Assembled Width (in.) | 5.00 |
| Assembled Height (in.) | 8.50 |
| Weight (lbs) | 11.00 |
Product Features
- Advanced Technology: It can easily weld normal rods below 5/32 and features high duty cycle capabilities, allowing for the consecutive welding of 10 electrodes without protection. Additionally, it can operate normally in temperatures as low as minus 15 degrees, ensuring reliable performance.

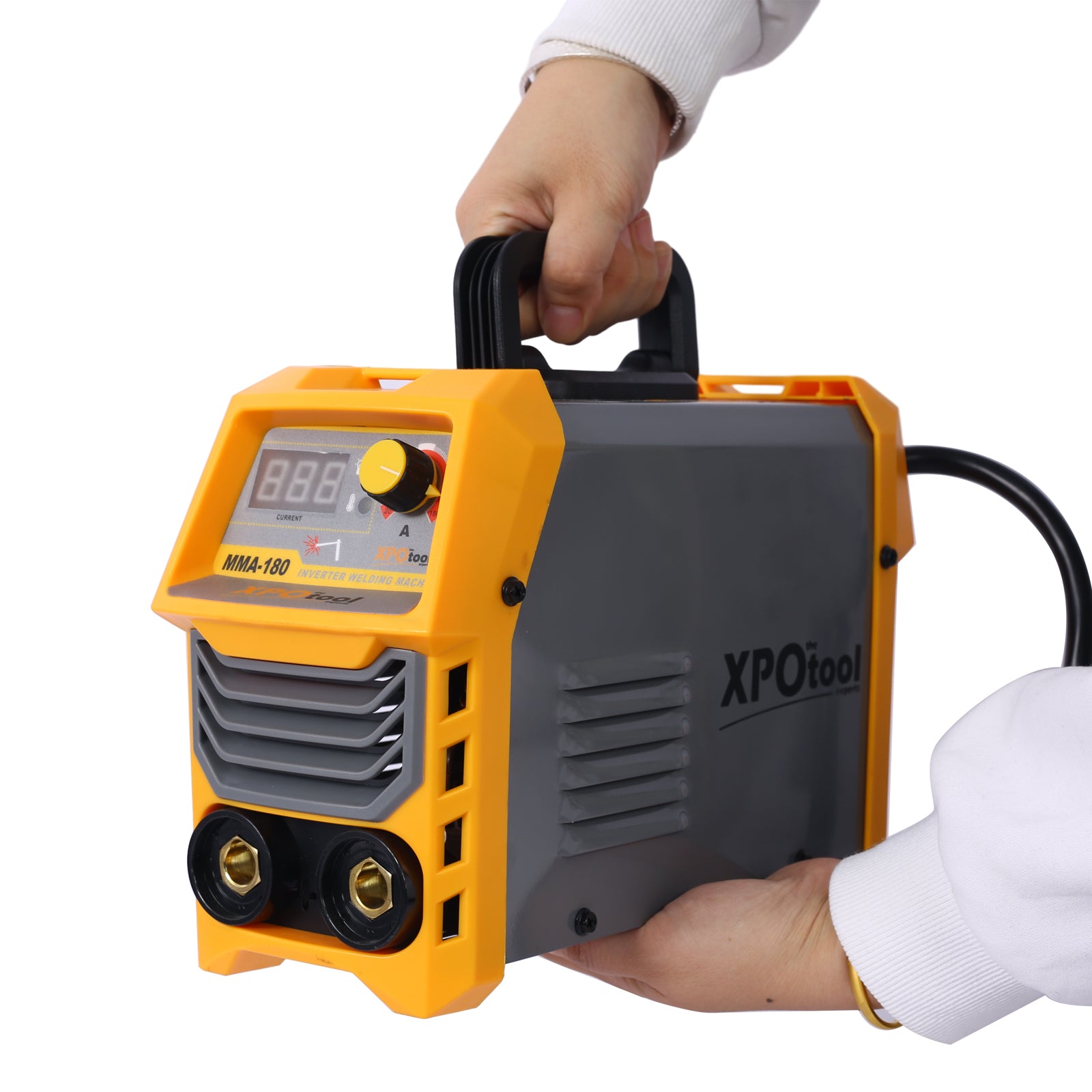

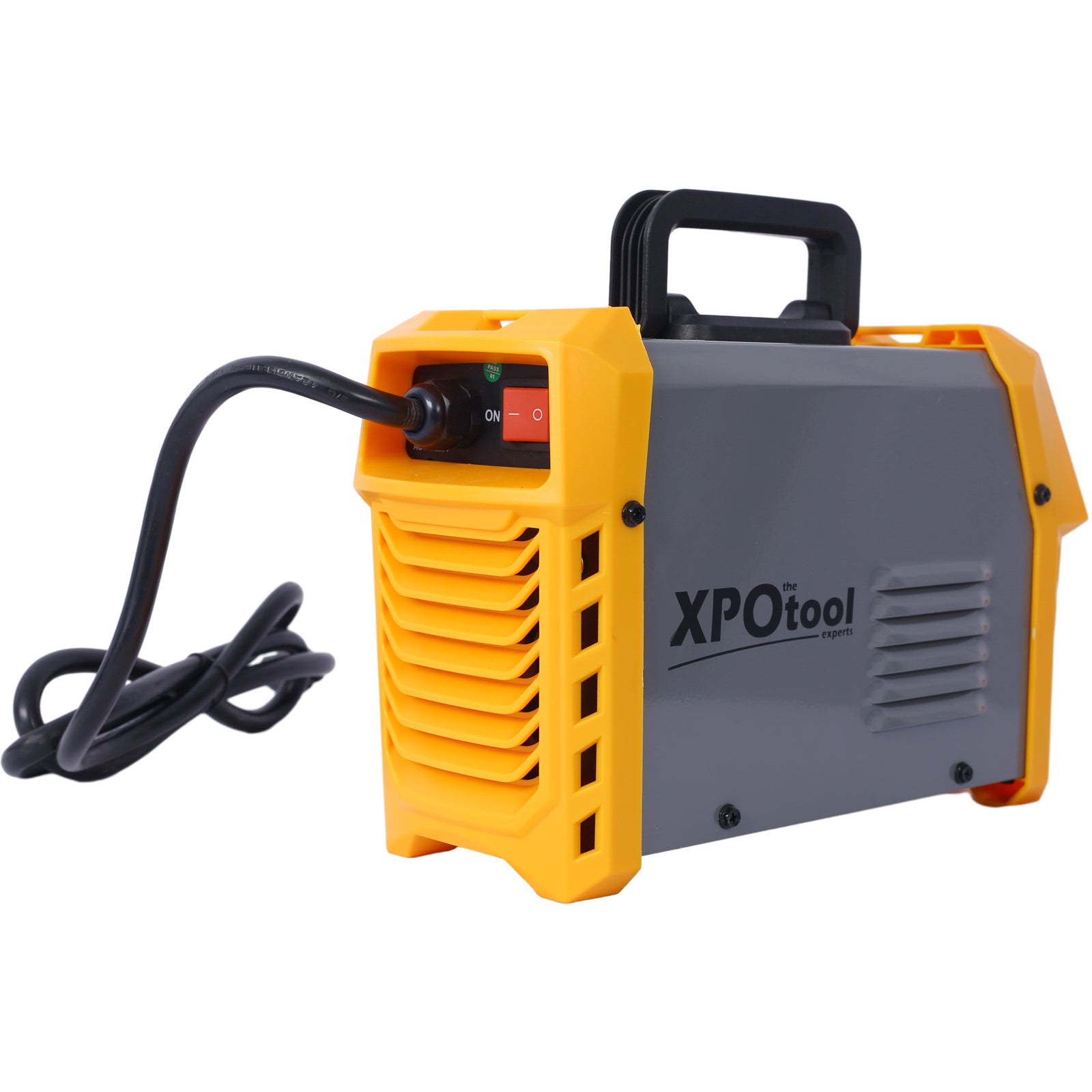

- Safety Guarantee & Portable Design: With comprehensive safety features including over-heating, over-current, and over-loading protection, this welder ensures a secure welding experience while maintaining high-quality performance. Its portable design, equipped with an easy carrying handle, makes it convenient for transfer and storage, enabling usage in various locations.

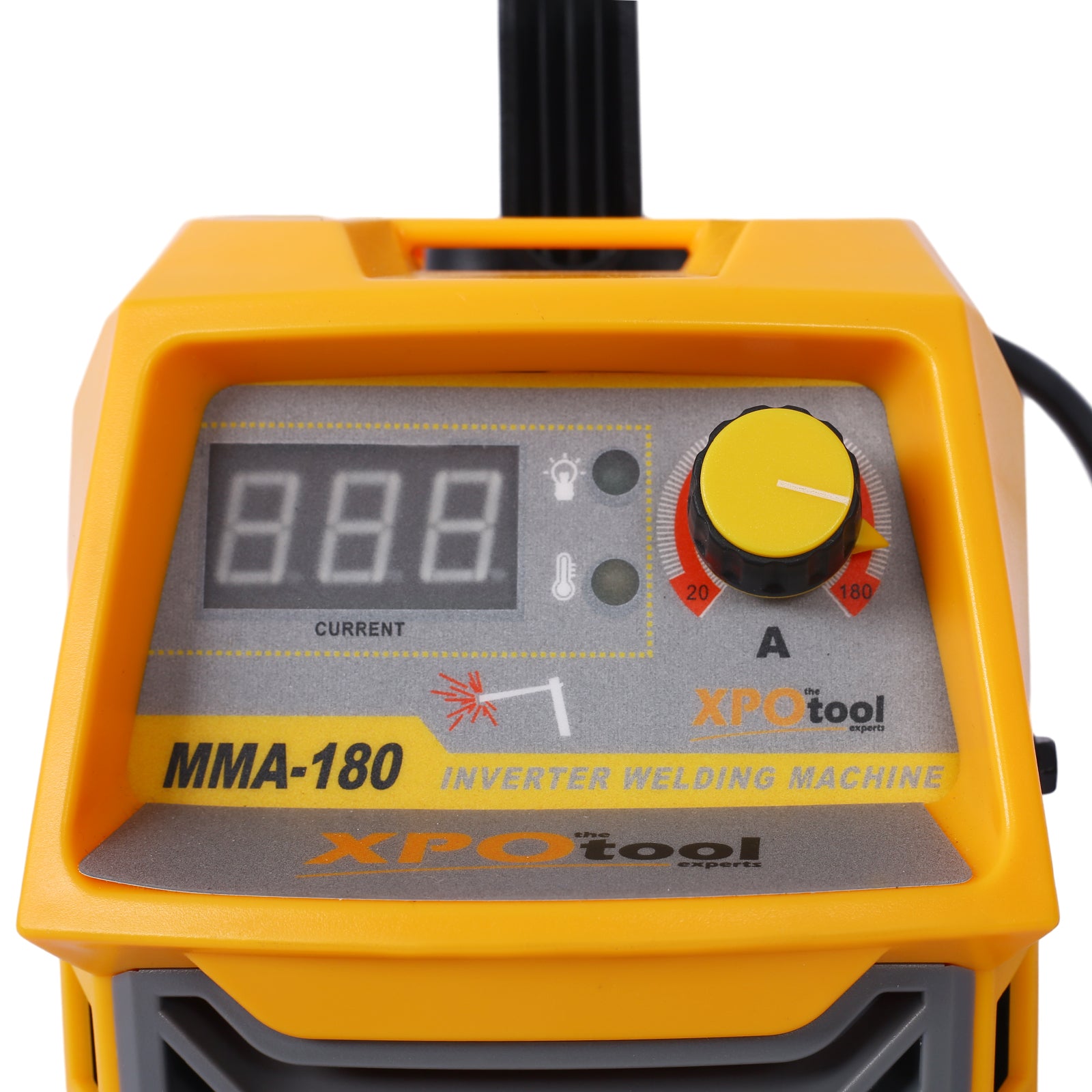

- Best Choice for Beginners: Ideal for welding with E6011, E6013, E6014, and E7018 electrodes, this welder's digital unitary design automatically matches electrode sizes and current, making it suitable for beginners. The seamless welding process produces beautiful results, even without extensive welding experience.
- Dual-Voltage & High-Quality Accessories: The 20A-180A current stepless adjustment and 90V-260V wide-voltage design make this welder adaptable to various voltage fluctuations. Its 110/220V dual-voltage

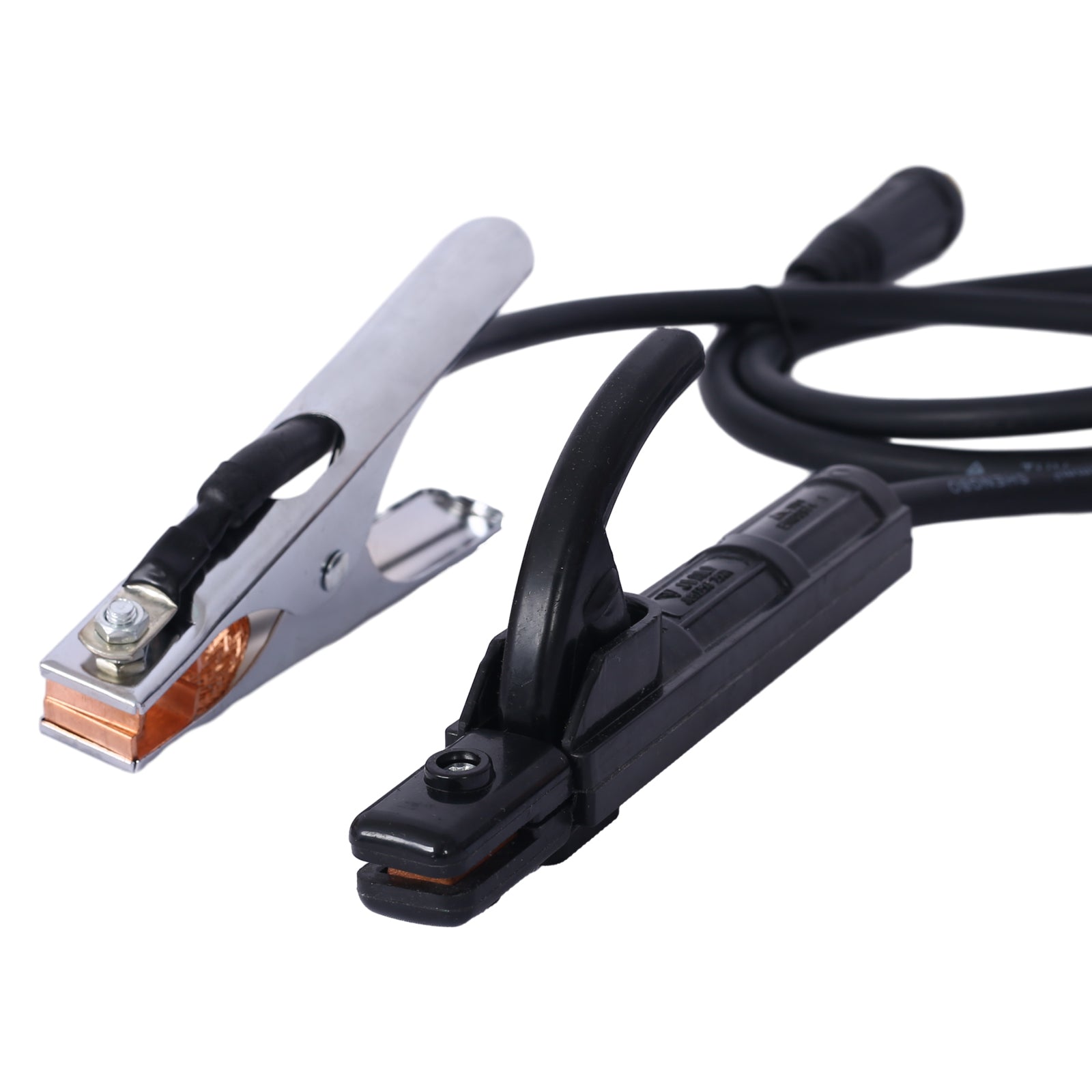

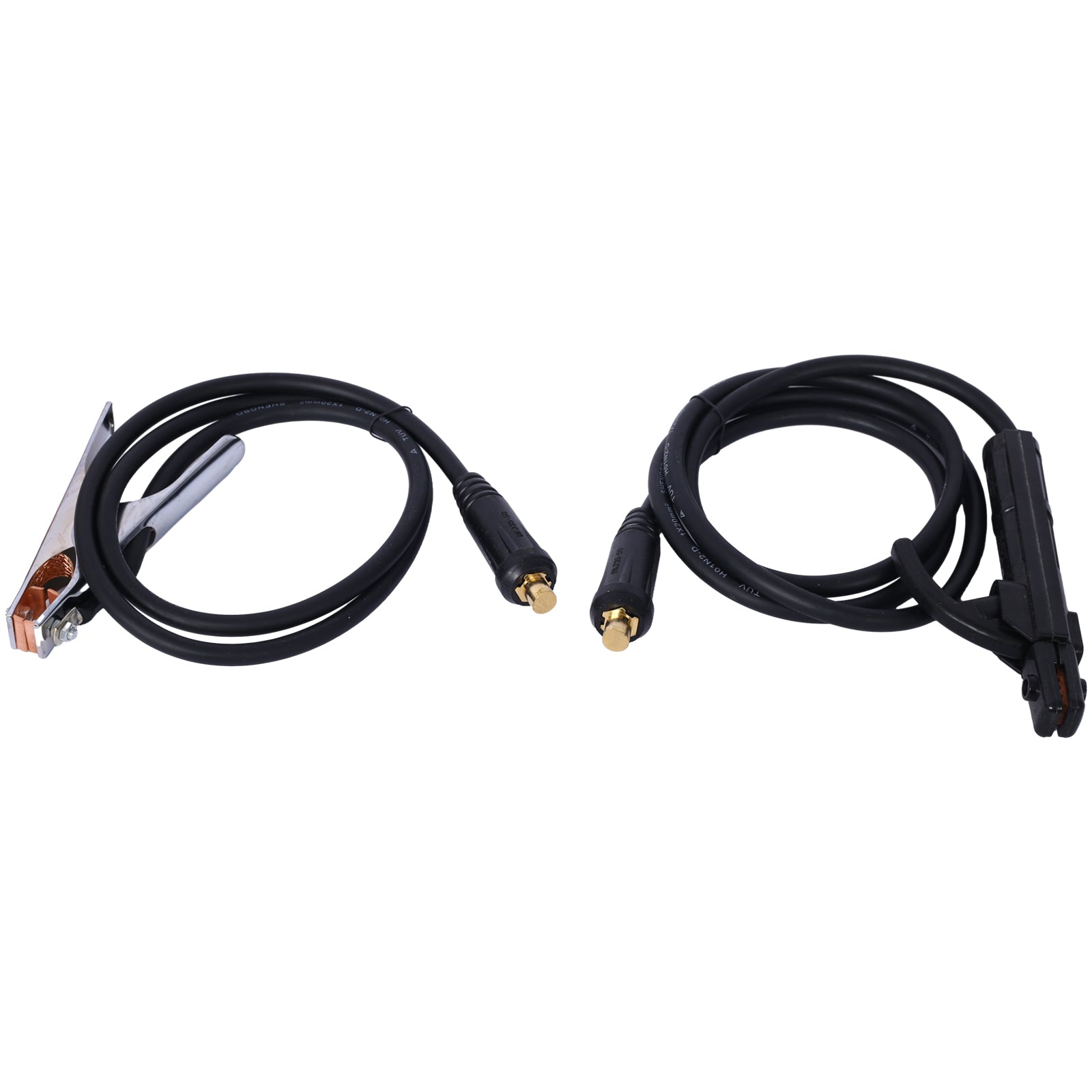

- automatic conversion further enhances its usability. The welder comes with a range of high-quality accessories, including a 500A Electrode Holder Assembly, a 500A Work Clamp Assembly
Description
Power voltage: 230V/110V
Frequency: 50HZ/60HZ
Max Absorbed power: 6.1KW
Current range: 20-180A
Max no-load voltage in DC: 65V
Duty cycle: 45%@180A at 40℃
Welding wire diameter: Φ2.0-4.0mm
Insulation class: H
Case protection degree: IP21S
Arc-starting COS: 0.9
Efficiency(%): 80%
'Arc force / Hot start
Anti-Stick
Current protection
Overlheat protection'

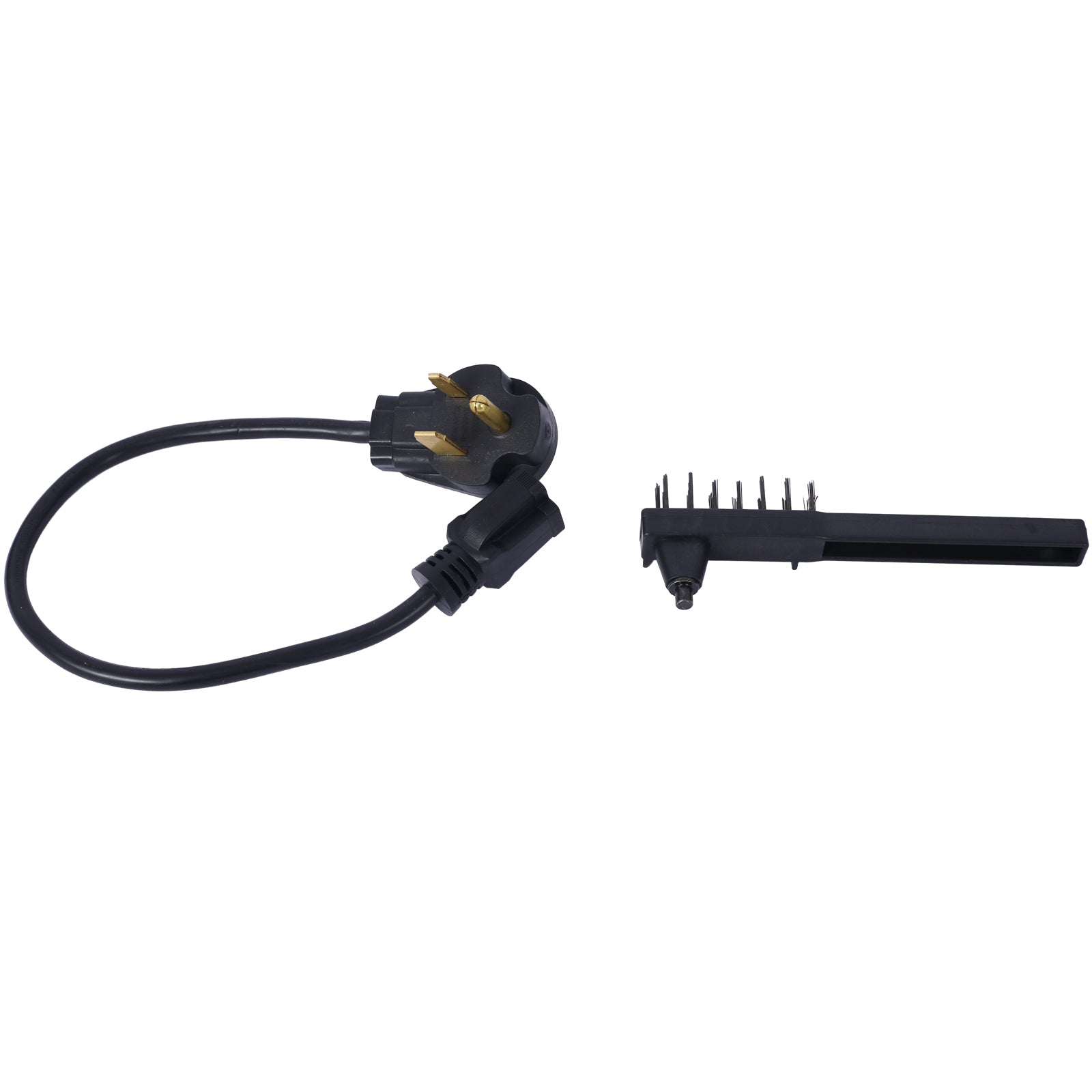

110V/220V conversion plug E257089 XN650P-B XUANHUA
Conversion plug wire (UL) C(UL) SJT 3/C 14AWG(2.08mm2) 105℃ VW-1 300V 500mm
long Welding gun wire TUV H01N2-D 120mm2 SHENGBO 2 meters long
Ground wire TUV H01N2-D 120mm2 SHENGBO 1.5 meters long
Power plug c(UL) GL-18 E488060
Power cord (UL) SJTW 3*2.08mm2 (14AWG) 105℃ 300V VW-1 ZHEJIANG GUANGLAI 1.5 meters long
