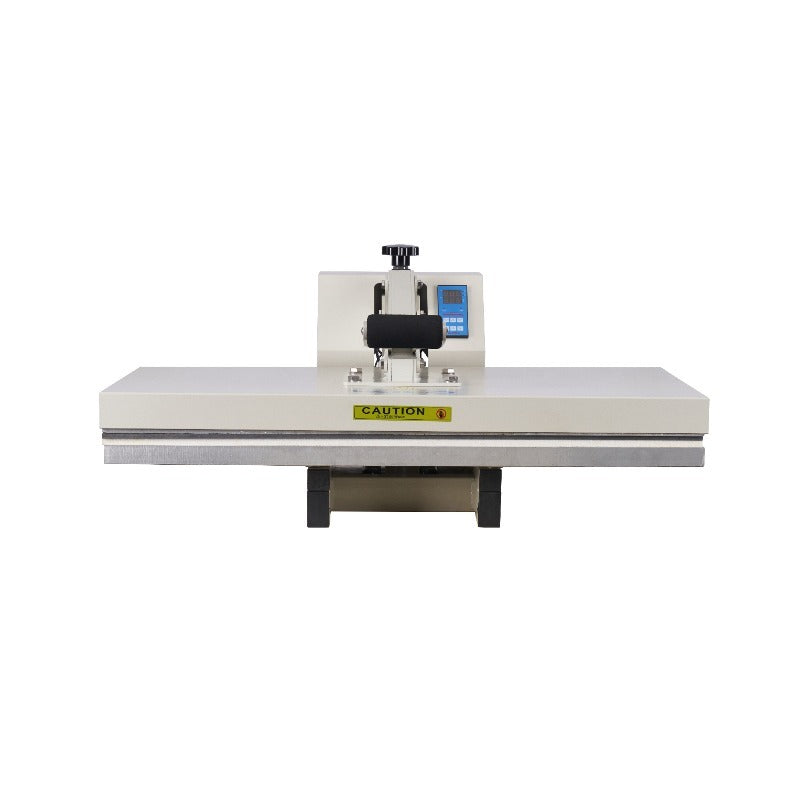

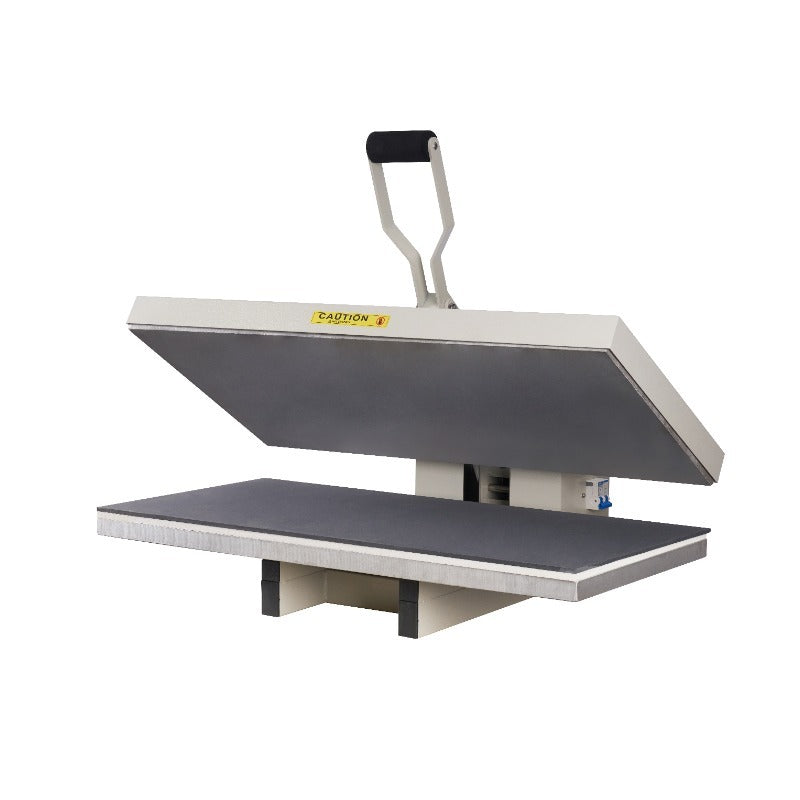

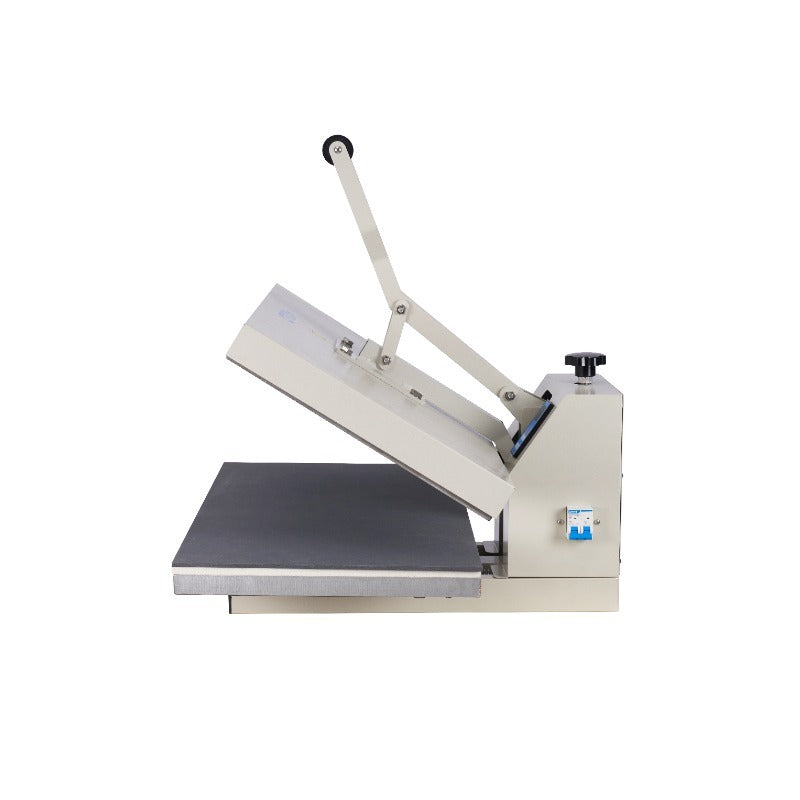

16x32 Large Format Manual Heat Press Machine 110V,2600W
16x32 Large Format Manual Heat Press Machine 110V,2600W
Regular price
$1,352.56
Sale price
$1,352.56
Regular price
$2,025.11
Specifications
| Place of Origin | China |
| Main Color | Grey |
| Main Material | Aluminium |
Dimensions & Weights
| Assembled Length (in.) | 31.50 |
| Assembled Width (in.) | 24.30 |
| Assembled Height (in.) | 28.00 |
| Weight (lbs) | 101.43 |
Product Features
- 1. Heat press machine suitable for larger area heat transfer press operations
- 2. The heating plate adopts the structure of double pressure rods and double helical buttons, which can adjust the pressure more evenly and more precisely
- 3. The required pressure ensures the good press between the upper and lower plates, with better pressing effect
- 4.For T-shirts, mouse pads, license plates, magnetic material and more
- 5. Special high temperature cloth for hot stamping machine covered
- 6. High accuracy of signal indication when press process is completed;
Description
Manual Heat Press Machine
1. Heat press machine suitable for larger area heat transfer press operations
2. The heating plate adopts the structure of double pressure rods and double helical buttons, which can adjust the pressure more evenly and more precisely
3. The required pressure ensures the good press between the upper and lower plates, with better pressing effect
4.For T-shirts, mouse pads, license plates, magnetic material and more
5. Special high temperature cloth for hot stamping machine covered
6. High accuracy of signal indication when press process is completed;
High Pressure Manual Heat Press Machine
The heating plate adopts special ultra-precision wire tube technology, which can effectively ensure the temperature Equilibrium and peace;
The surface of the heating plate is sprayed with Special high temperature cloth, which can effectively ensure the surface of the heating plate smooth surface, durable;
Full digital temperature and time display, temperature error(±2℃);
Designed according to human engineering , machine is easy to operate with even pressure
Open and close heating plate, easy to use
Pressure is adjusted by connecting rod, the adjustment torque is small and the range is large
Remarks:
Additional accessories intended for replacement. Please ensure that they are stored or maintained appropriately.
Technical features:
| Voltage(V): | 110V/60HZ |
| Power(KW): | 2600 |
| Temperature(℃): | 0-299 |
| Delaying time(S): | 1-999 |
| G.W.(LB): | 112.5 |
| Packing Size(in): | 32.7X27.6X15.7 |
| Accept Thickness: | Max. 2.36'' Thick Items |
| Range of Application: | Pure Cotton, Polyester, Chemical Fiber, Pearl Board, Metal Pendant, Mousepad, Vitrolite, Ceramics |
| Heat Plate Size: | 16 x 32'' (40 x 80cm) |
2
| Pure Cotton Time: | 15s-25s |
| Polyester Time: | 40s |
| Chemical Fiber Time: | 10s-40s |
| Pearl Board Time: | 60s-100s |
| Metal Pendant Time: | 60s |
| Mousepad Time: | 50s |
| Vitrolite Time: | 180s |
| Ceramics Time: | 180s |
Temperature Requirements of Different Materials
| Pure cotton | 356℉-428℉ (180℃-220℃) |
| Polyester | 356℉ (180℃) |
| Chemical fiber | 302℉-356℉ (150℃-180℃) |
| Pearl board | 356℉ (180℃) |
| Metal pendant | 356℉ (180℃) |
| Mousepad | 374℉ (190℃) |
| Key ring pendant | 356℉ (180℃) |
| Ceramics | 356℉-428℉ (180℃-220℃) |
