24x40 large formart pneumatic up sliding dual platen heat press machine
24x40 large formart pneumatic up sliding dual platen heat press machine
Regular price
$4,218.04
Sale price
$4,218.04
Regular price
$7,144.30
Specifications
| Place of Origin | China |
| Main Color | White+Blue |
| Main Material | Aluminium |
Dimensions & Weights
| Assembled Length (in.) | 83.00 |
| Assembled Width (in.) | 36.00 |
| Assembled Height (in.) | 38.00 |
| Weight (lbs) | 396.90 |
Product Features

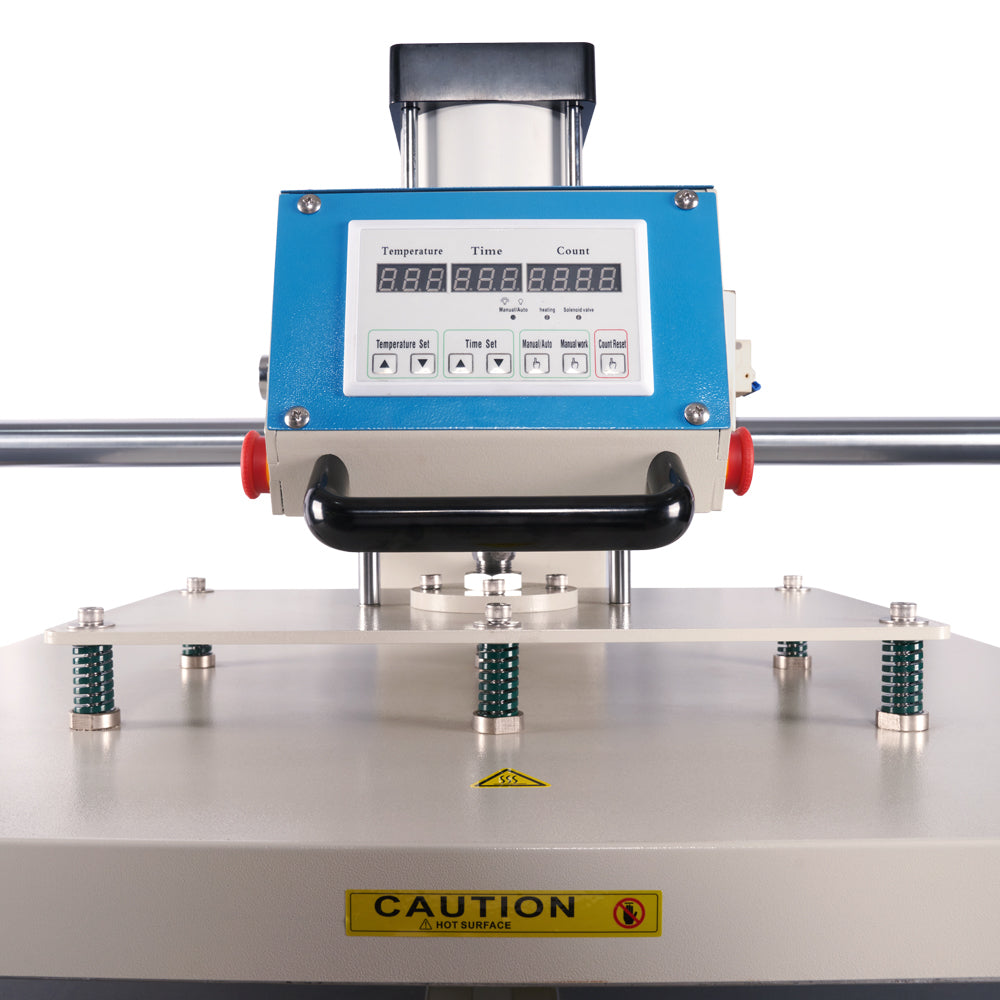

- 1. Full digital integrated display control, temperature, time, counting
- 2. Aluminum heat plate with die casting heating pipe
- 3. 2.36'' pressure adjustable range can process a wider range of products
- 4. High accuracy of signal indication when press process is completed
- 5. Multiple time settings heat press machine
- 6. Sliding heat plate head design
- 7. Easily adjust the certain pressure
- 8. Powered by an air compressor ( not included)
Description
Upper Slide Pneumatic Double Position Hot Stamping Machine
1. Heat press machine is full digital integrated display control;
2. High accuracy of signal indication when press process is completed;
3. Heating tube and heating plate are integrated into a whole part, short heating time, safe, durable and with even temperature;
4. Heat press machine pressure can be adjusted up to 8kg/cm², It adopts connected track which is stable and convenient for sliding, with high efficiency;
5. Special high temperature cloth for hot stamping machine covered
6. Lower plate covered with 6MM silicon mat and 1CM sponge to heat even heating pressure
7. Heat press machine is automation print once backside inductive screw touched
8. Left and right side bearings parallelly move the heat press machine
General Pressure for 0.4Mpa-0.6Mpa Heat Printing
The heat press machine can adjust to different pressure as needed

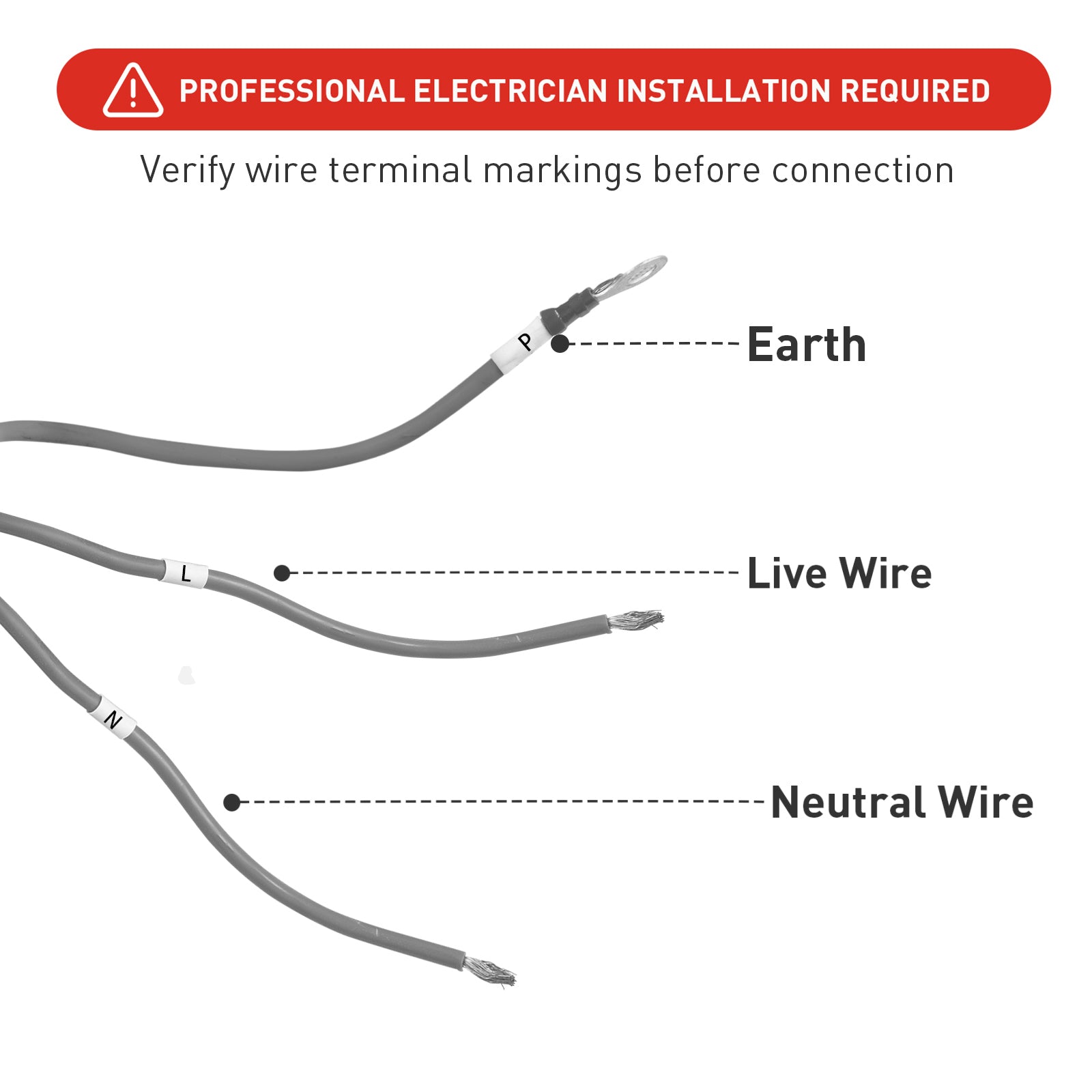

Professional electrician installation required.
Wire according to the actual markings.Verify wire terminal markings before connection: PE is Earth, L is Live Wire, N is Neutral Wire.
Heat Press Machine with Base Frame for Much Stable Printing and Easy Movement with the Brake Caster
1
Bright, Large LED Wide Viewing Angle Heat Press Machine
1
Remarks:
Items numbered 1，5, 6，7，and 8 are additional accessories intended for replacement. Please ensure that they stored or maintained appropriately.
Technical Details
| Voltage(V): | 220V/ single phase |
| Power(KW): | 7 |
| Temperature(?): | 0-299 |
| Delaying Time(S): | 1-999 |
| G.W.(LB): | 396.9 |
| Packing size(in'): | 76.8'' x 37.4'' x 37.45'' |
| Accept Thickness: | Max. 2.36'' Thick Items |
| Range of Application: | Pure Cotton, Polyester, Chemical Fiber, Pearl Board, Metal Pendant, Mousepad, Vitrolite, Ceramics |
| Heat Plate Size: | 28' x 35'' (70 x 90cm) |
Time Requirements of Different Materials
| Pure cotton | 15s-25s |
| Polyester | 40s |
| Chemical fiber | 10s-40s |
| Pearl board | 60s-100s |
| Metal pendant | 60s |
| Mousepad | 50s |
| Vitrolite | 180s |
| Key ring pendant | 100s |
| Ceramics | 180s |
| Material | Temperature |
| Pure cotton | 356℉-428℉ (180℃-220℃) |
| Polyester | 356℉ (180℃) |
| Chemical fiber | 302℉-356℉ (150℃-180℃) |
| Pearl board | 356℉ (180℃) |
| Metal pendant | 356℉ (180℃) |
| Mousepad | 374℉ (190℃) |
| Vitrolite | 392℉ (200℃) |
| Ceramics | 356℉-428℉ (180℃-220℃) |
