Forklift Short Mobile Crane Lifting Hoist Jib Boom 9900lb Capacity Attachments
Forklift Short Mobile Crane Lifting Hoist Jib Boom 9900lb Capacity Attachments
Regular price
$1,212.41
Sale price
$1,212.41
Regular price
$2,020.68
Specifications
| Main Color | Yellow |
| Main Material | Steel |
Dimensions & Weights
| Assembled Length (in.) | 49.22 |
| Assembled Width (in.) | 19.11 |
| Assembled Height (in.) | 9.59 |
| Weight (lbs) | 226.71 |
Product Features
- The type FJCS45 short fixed jib is designed as an afforable general purpose jib
- It's able to manoeuvre in confined spaces, with a 75'' reach when fully extended.
- This slip-on jib is held to the forklift by a safety chain.
- 9900 lbs at first position to 1650 lbs fully extended
Description
Product Overview

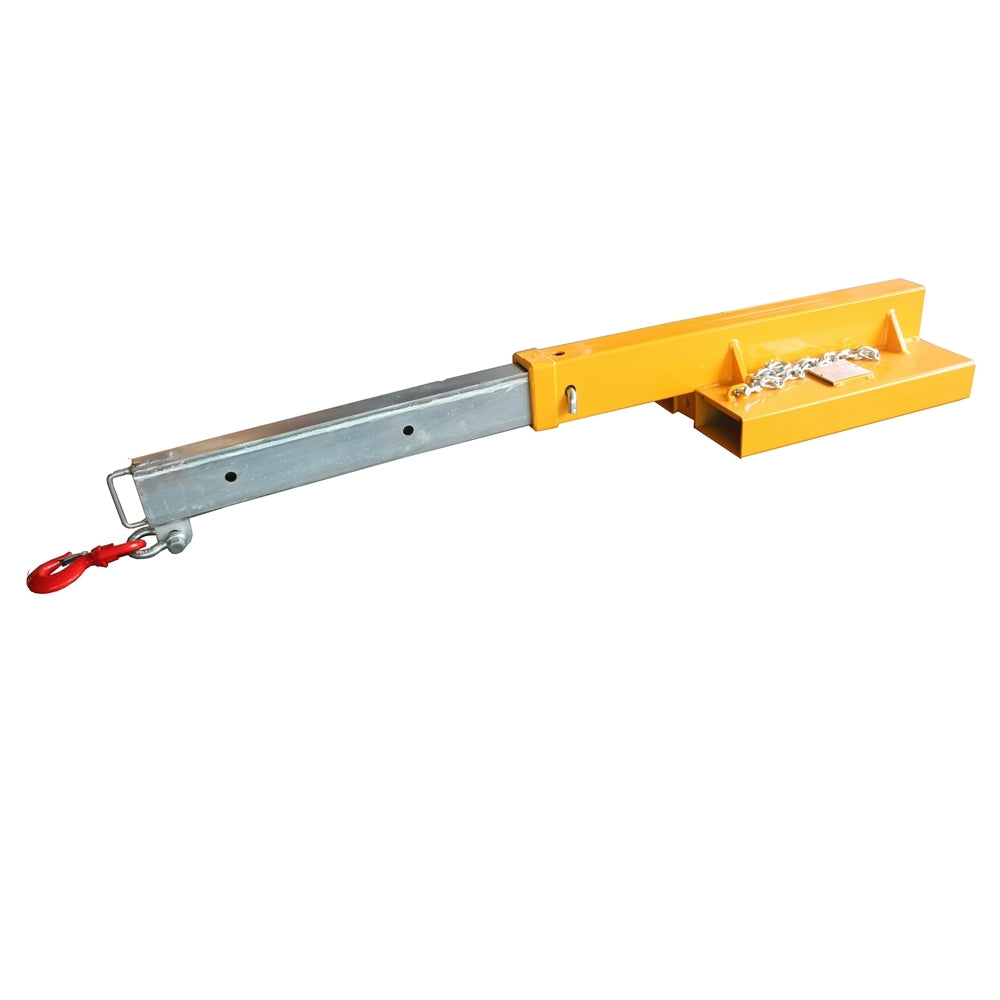

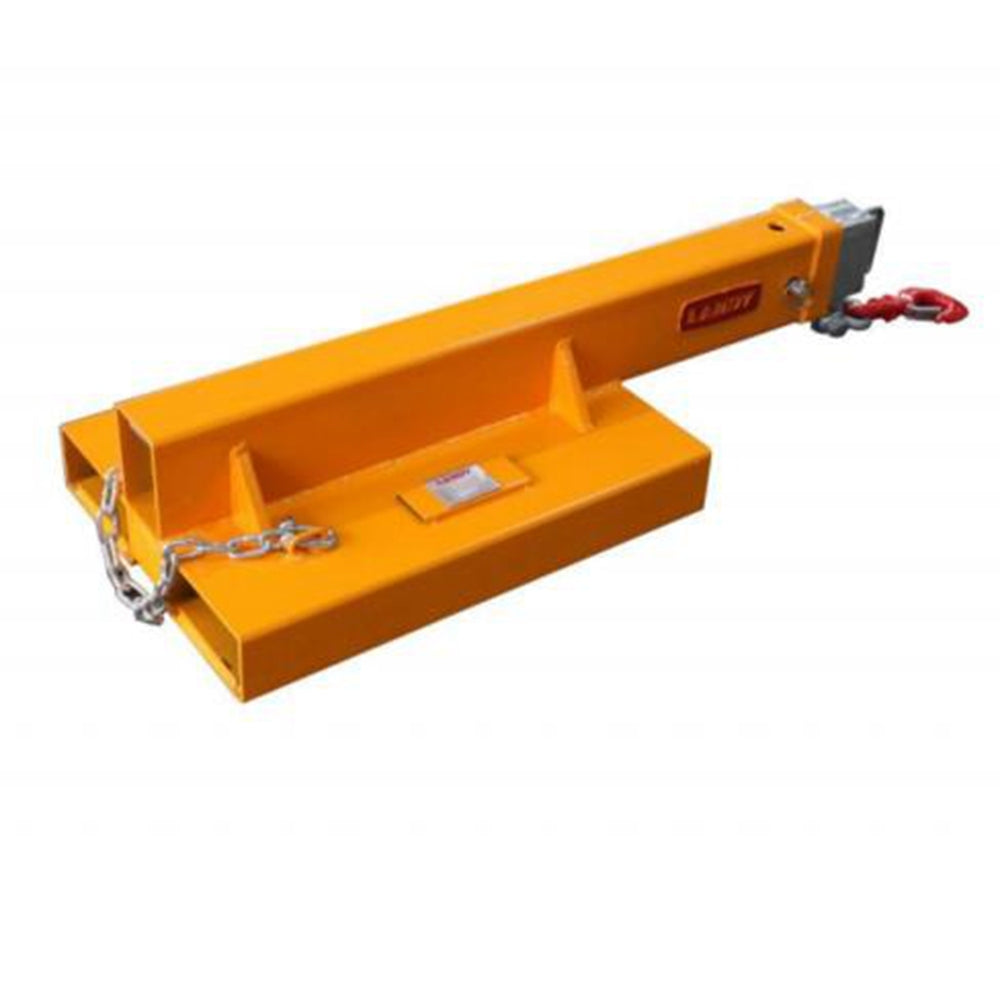

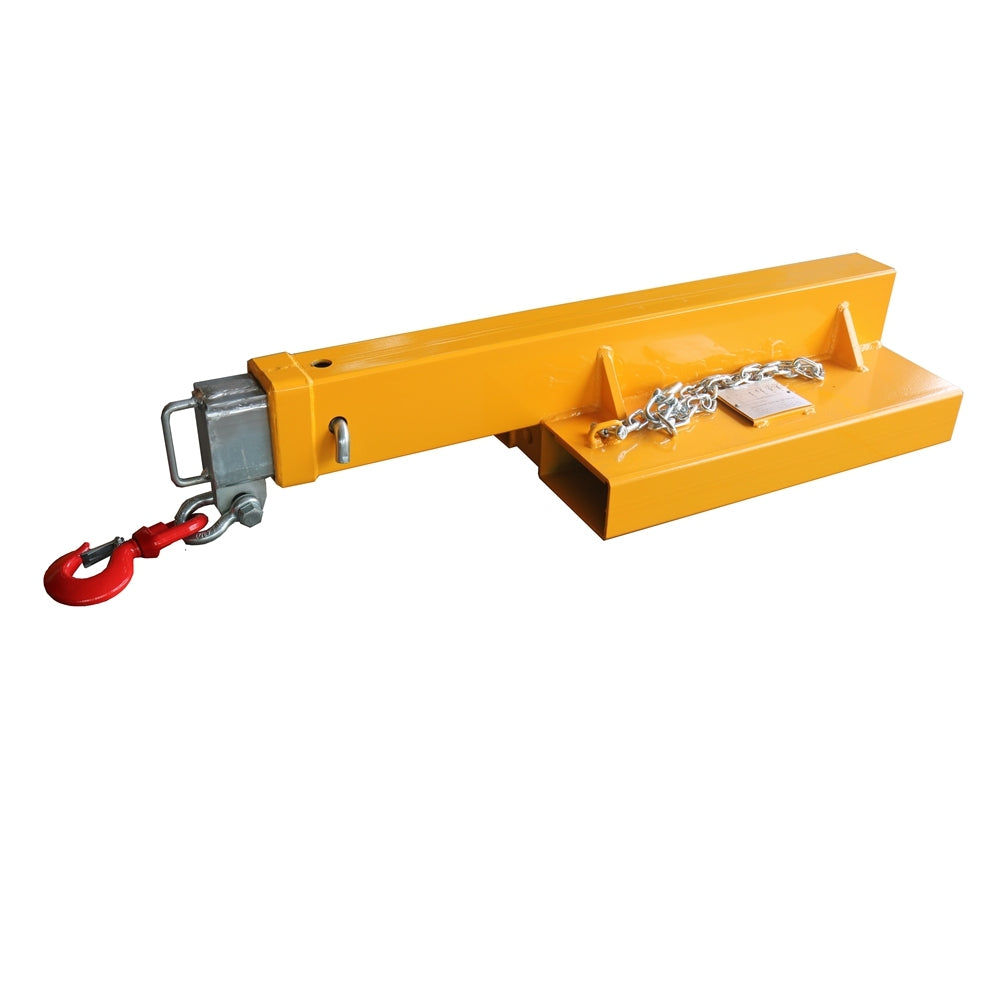

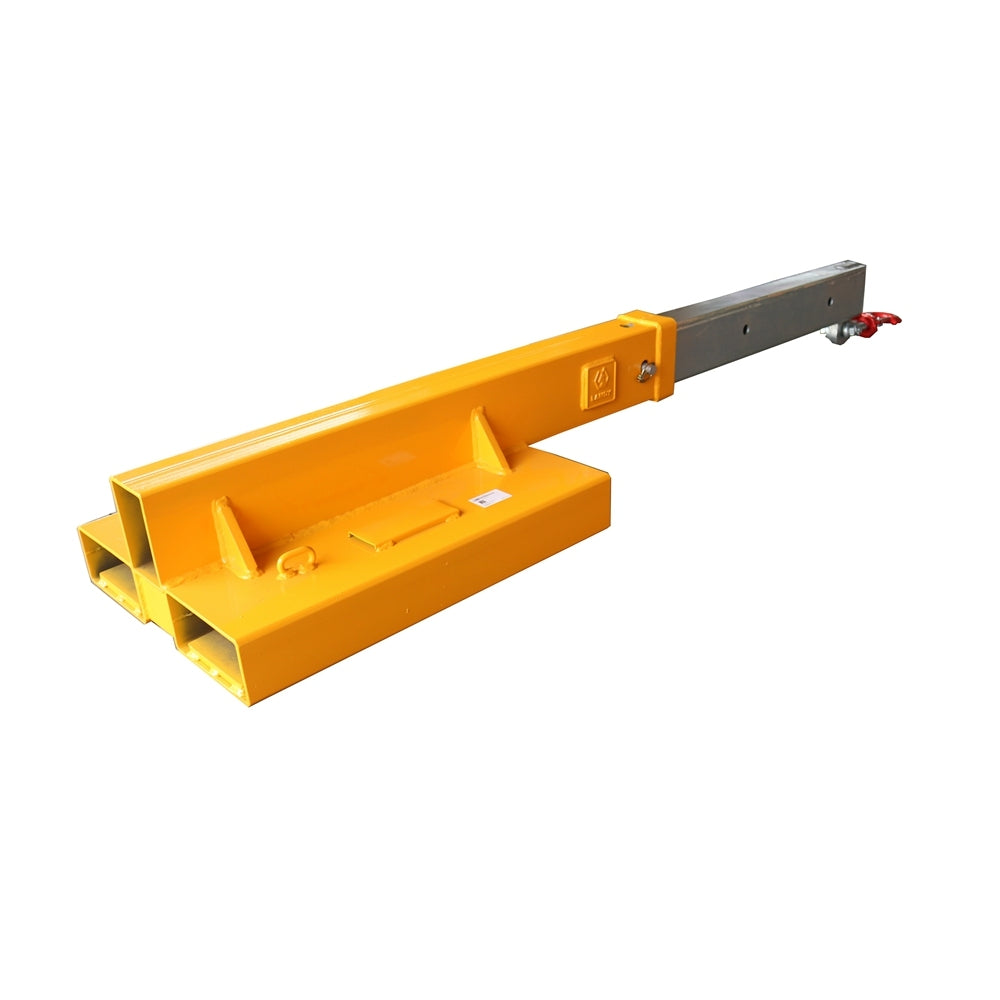

The type FJCS45 short fixed jib is designed as an afforable general purpose jib able to manoeuvre in confined spaces, with a 75'' reach when fully extended. This slip-on jib is held to the forklift by a safety chain.
Specifications
| Safe Working Load | 9900lb |
| Load Centre | 26.4in |
| Fork Slots | 7.2x2.5in |
| Pocket Centres | 11.4in |
| Horizontal Centre of Gravity | 28.9in |
| Vertical Centre of Gravity | 4.7in |
| Package Size (LxWxH) | 53.6 x 22.8 x 15in |
| Package Weight | 260lb |

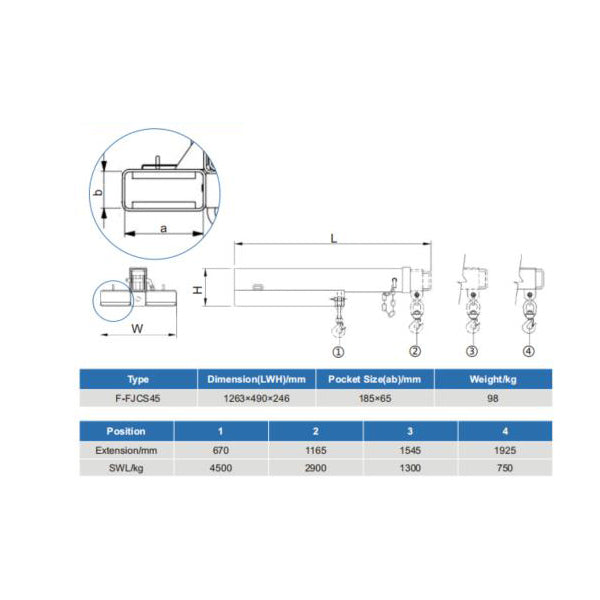

Technical Drawing
Safe working loads per position
